Air Compressor (BOX-AIR)
S12VPAPV3
CA$799CA$899
Sherpa BOX AIR is compact yet heavy duty, simple to use, portable, 12V Air Compressor, designed to take with you when you go touring or up the beach for a weekend. Designed to generate compressed, oil free air, it’s perfect for a range of applications such as tyre inflation. Supplied in the heavy duty carry case is everything you need for your next off-road adventure.
-
Portable 12V Air Compressor Kit

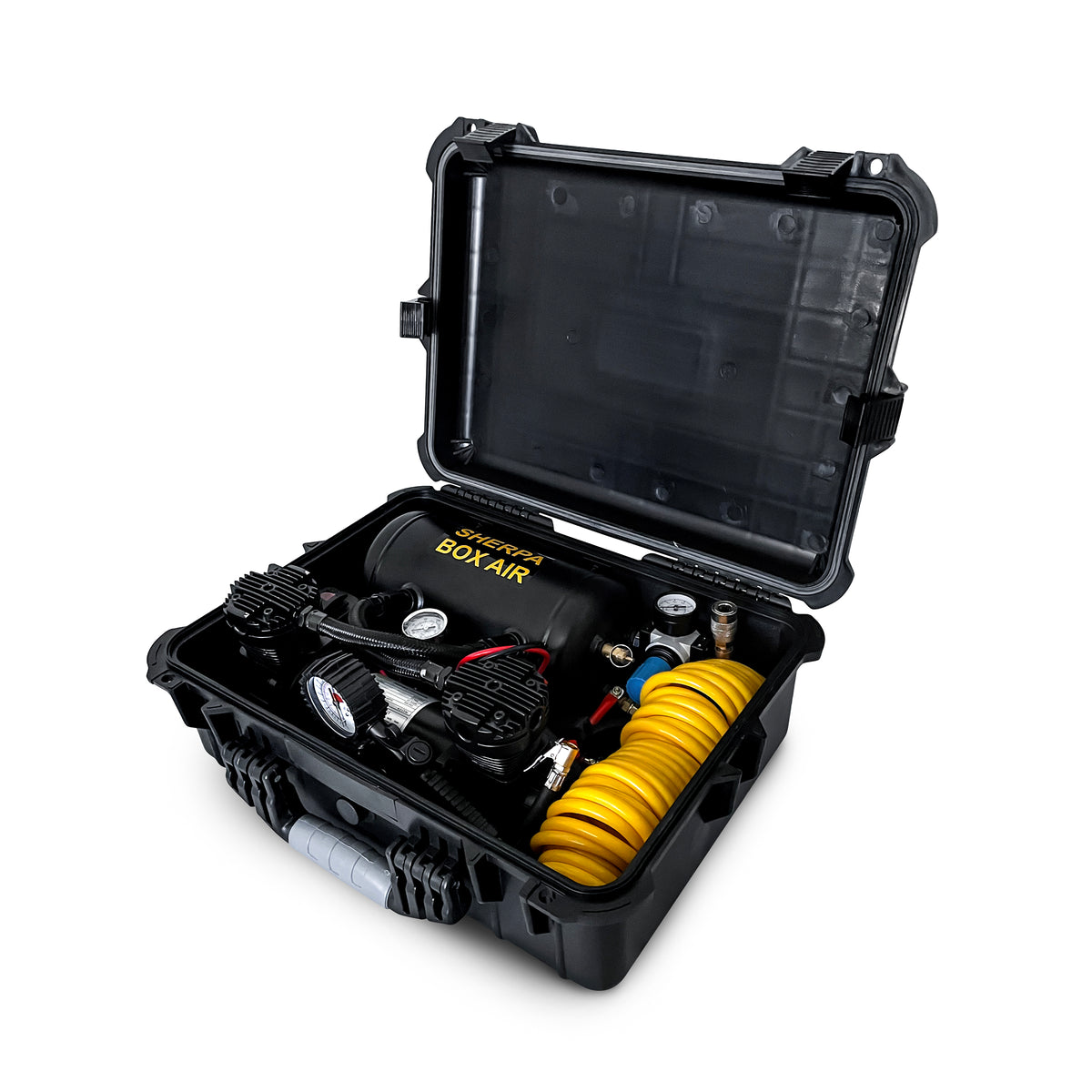

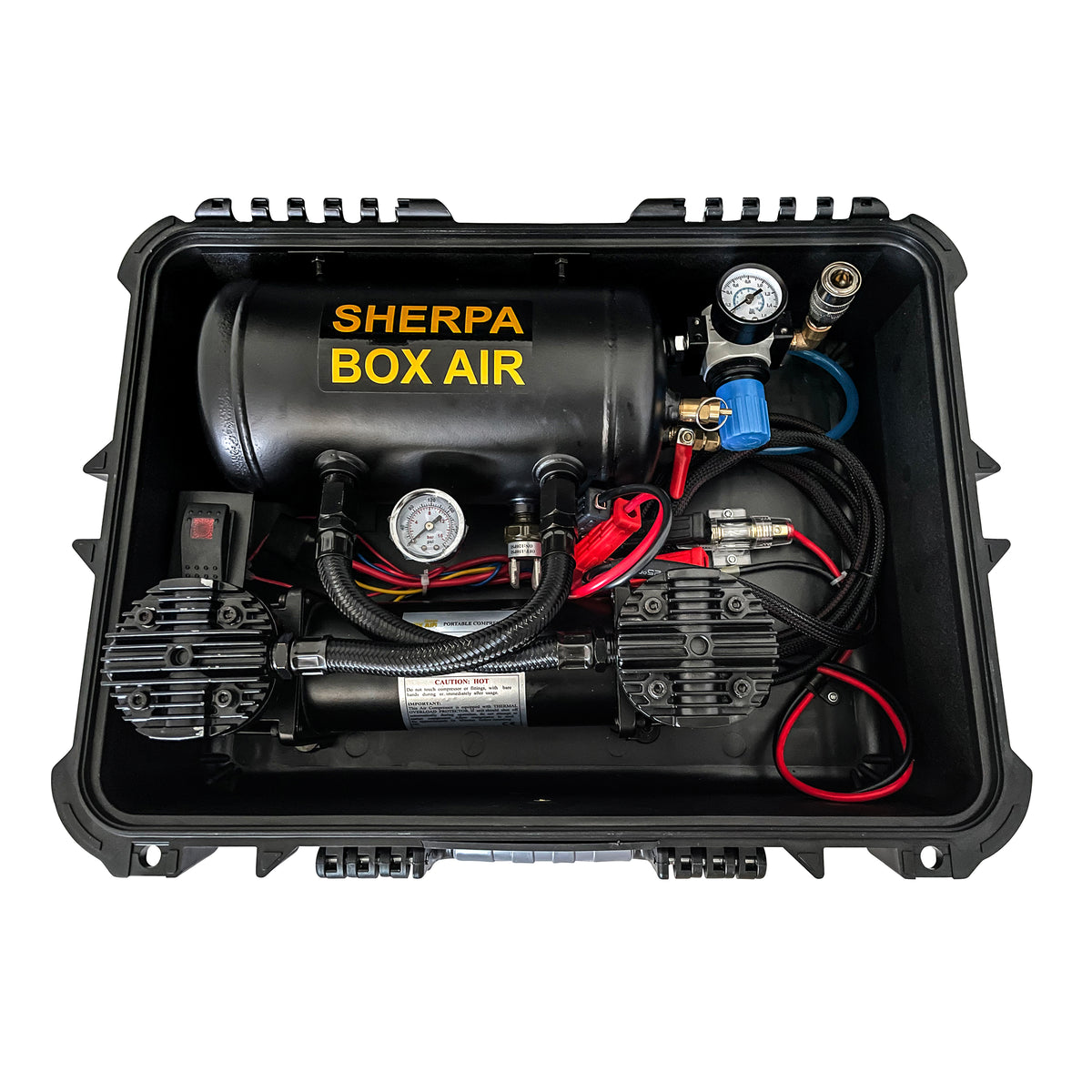

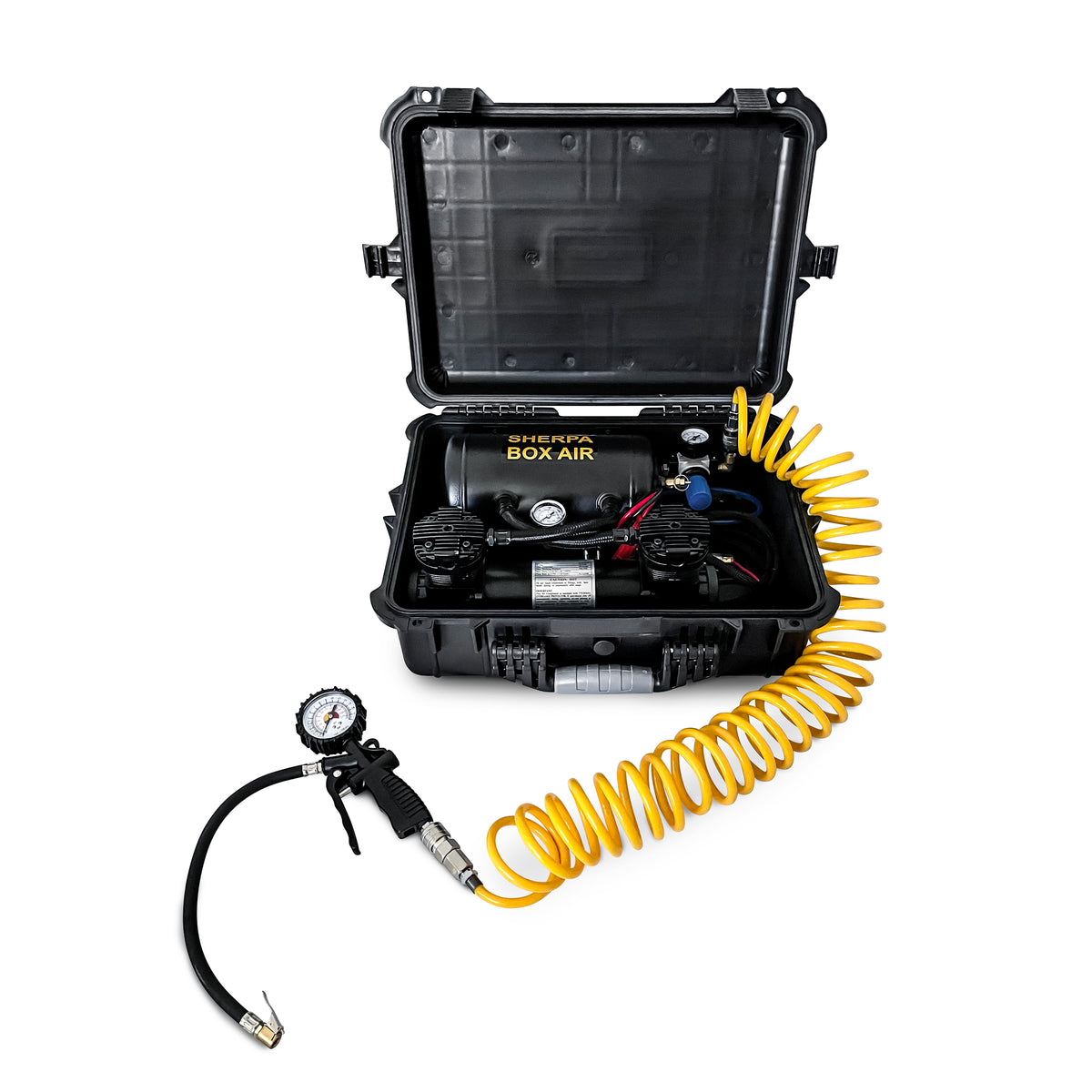

Sherpa deliver a quality and powerful air compressor mounted inside a heavy duty carry case making it a portable and simple addition to your next off-road adventure. Included in the kit is an air receiver tank with pressure switch as well as air line, gauge and power leads. This kit is ready to go and has everything you need to inflate your tyres when you go on your next adventure.
Compressor Features:
- Exceptional Sherpa quality
- High volume air output from dual head compressor
- Integrated air tank, pressure switch and safety relief valve
- Convenient 12V power demand
- Fast tyre inflation with 150 PSI tank air
Build Quality and Performance - Sherpa BOX AIR
When reliability and performance is key, only the highest quality components can be used and this is exactly what the BOX AIR encompasses. The powerful dual head compressor is designed to reach pressures up to 300 PSI which is far more than most users would ever require. Derating the compressor to 150 PSI means it's working below its maximum design capacity and will last. Beware of cheap knock off units running plastic substandard components that simply aren't robust in extreme conditions. Sherpa use the best components to deliver the greatest performance and reliability.

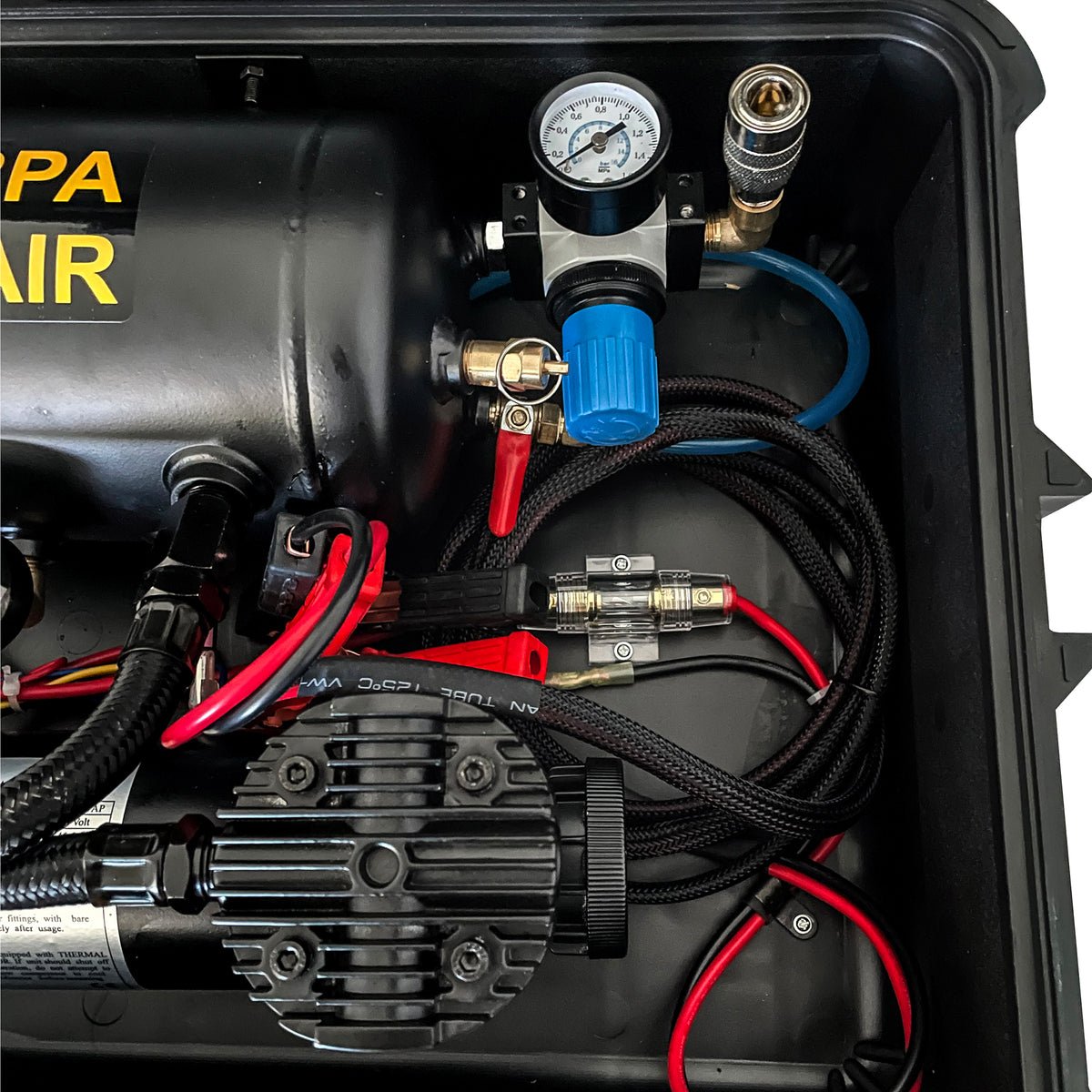

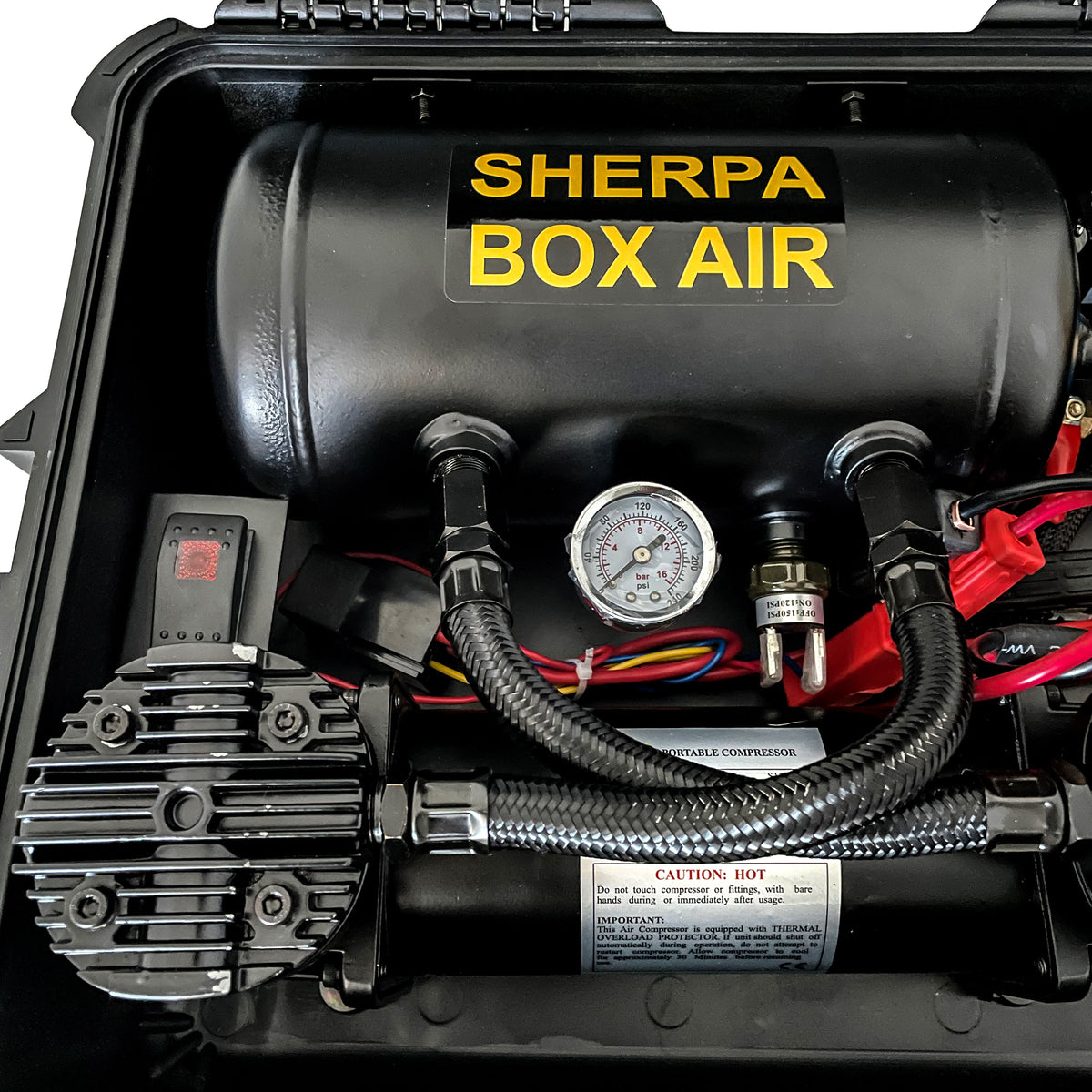

The Sherpa BOX AIR performs thanks to the dual head air compressor. Air flows are further improved by the incorporation of a 3.8L air receiver tank. The unit runs an automated pressure switch which controls the pressure in the tank to between 120 PSI and 150 PSI. Having this reservoir of pressurised air improves tyre inflation times as the compressor is left to run from start to finish and continues to store compressed air as you move between tyres and other activities.
BOX AIR Design

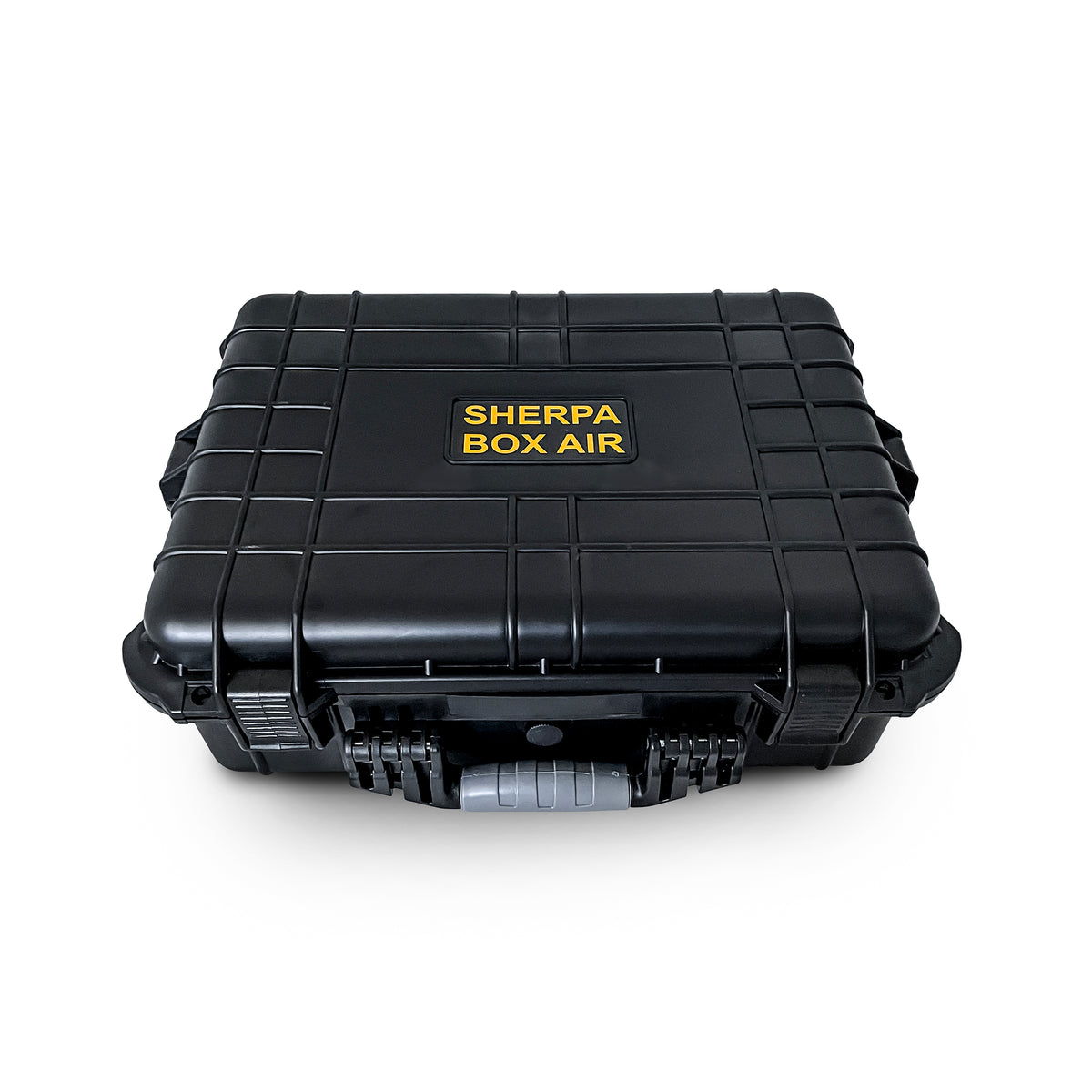

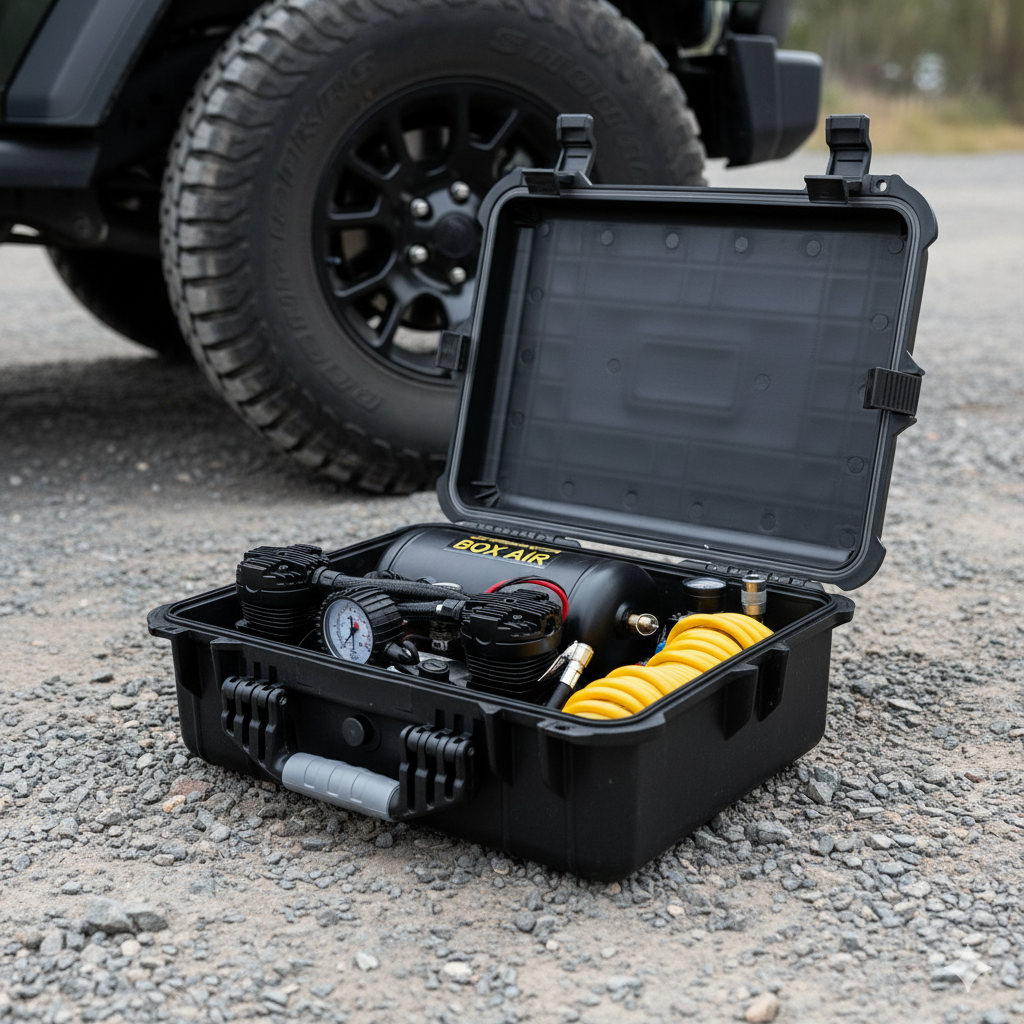

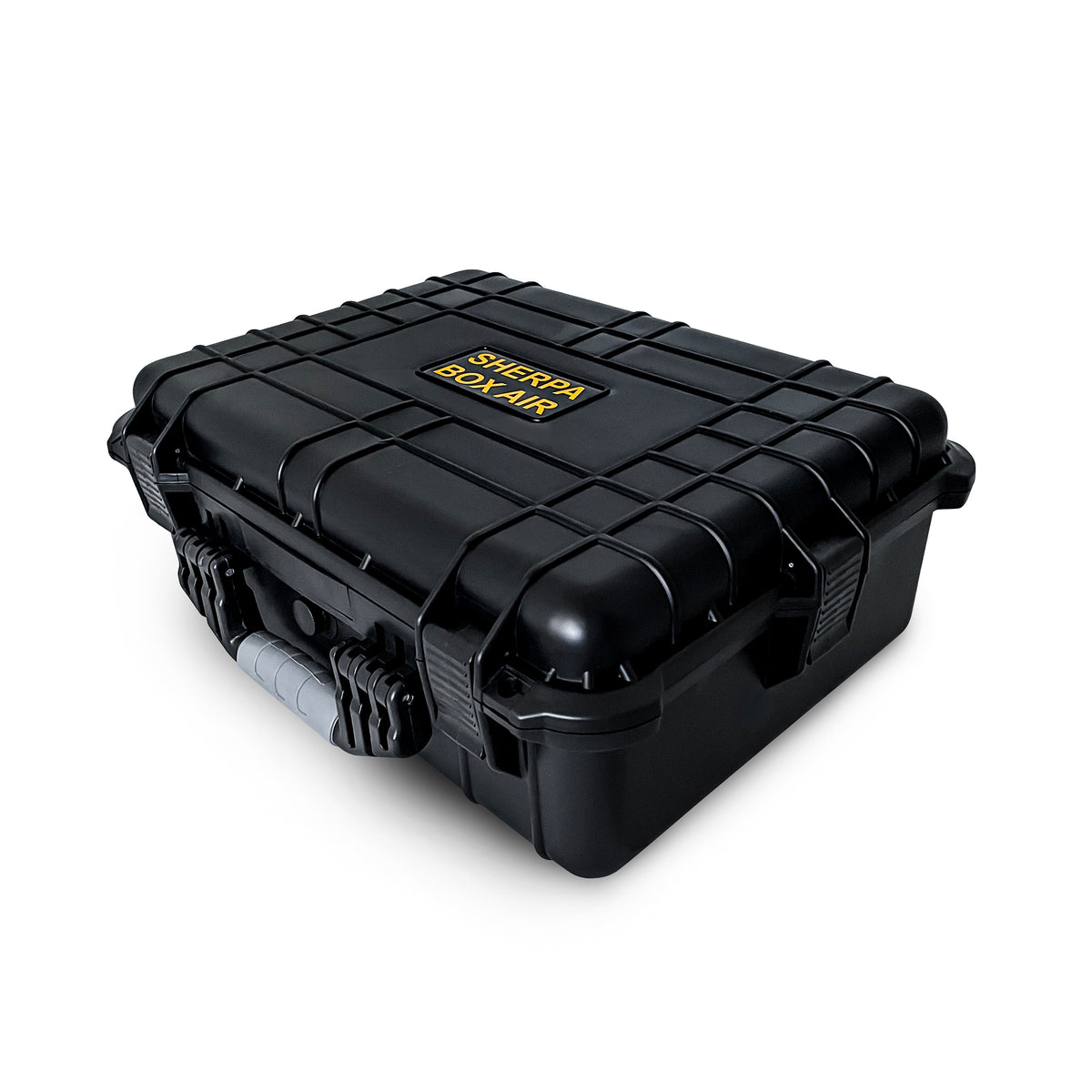

The BOX AIR is contained in an extremely heavy duty, waterproof carry case. This case is easy to pack in your ute, on your roof rack or in the back of your wagon. Lay the BOX AIR out on the sand and you have a stable work platform which houses everything you need for inflation activities. All components fit inside the box easily without complex packing requirements.
-
Portable 12V Air Compressor Kit
-
Model Sherpa BOX AIR Max. Operating Pressure
300 PSI
Pressure Switch Setting
On 120psi / Off 150 PSI
Relief Valve Setting
180 PSI
Air Tank Volume
3.8 L
Motor
12V
Power Draw
45 amps
Fuse
60 amps
Solenoid Rating
100 amps
Duty Cycle
30% @ 100 PSI
Power Leads
3m with Alligator clips
Air Line
6.5m PU
Weight
15 kg
Dimensions
515 x 400 x 195mm
Warranty
12 months
Performance Data:
Pressure (PSI) Current (A) CFM 0
16
4.2
40
30
2.3
90
38
1.9
150
41
1.6
200
43
1.3
300 45 0.7 -
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X Cable Data:
Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
