Cold temperatures reduce the amount of current a battery can deliver and increase the importance of clean, low-resistance connections. A battery that easily starts a vehicle in summer can show much greater voltage sag when a winch, compressor or charger is used at -20°C. Road salt also attacks exposed terminals and connectors. Keep batteries fully charged, inspect cable lugs and high-current plugs and remove corrosion before it creates heat. Cable size does not change with temperature, but the reduced battery margin makes voltage drop more obvious. Test high-current accessories under realistic winter conditions rather than assuming summer performance will be identical.

Use maximum current, total circuit length and allowable voltage drop. A winch can draw several hundred amps, so it needs far heavier conductors than a 40A charger or accessory compressor. Long runs to the rear of a pickup, trailer or auxiliary battery increase the required cable size. The connector, fuse holder, isolation switch and lugs must all be rated for the same circuit current. A heavy cable does not help if it terminates in an undersized connector. Keep runs short where practical and use quality crimps. In salt-exposed areas, protect connections so corrosion does not add resistance.

An isolator physically disconnects a high-current circuit when it is not required or when maintenance is being performed. This is especially useful for a winch, where otherwise a heavy live positive cable may remain routed to the front bumper at all times. The switch must be rated for the system voltage and current, including short-duration peaks. Mount it where it is accessible but protected. Operate it periodically through winter because moisture and road salt can corrode terminals or make an infrequently used mechanism stiff. An isolator does not replace fusing or circuit protection where those are required to protect cable.

Overheating usually comes from resistance at a joint: poor crimps, loose bolts, dirty contacts, corrosion, undersized plugs or damaged cable strands. Even a small resistance can generate significant heat when 100A or more flows. Replacing a melted connector without correcting the bad termination often results in another failure. Look for discolouration, softened housings or heat travelling into the cable. Canadian road salt makes connector maintenance especially important on external plugs and trailer circuits. If a connector becomes noticeably warmer than the adjacent cable, measure voltage drop across it under load and correct the resistance.

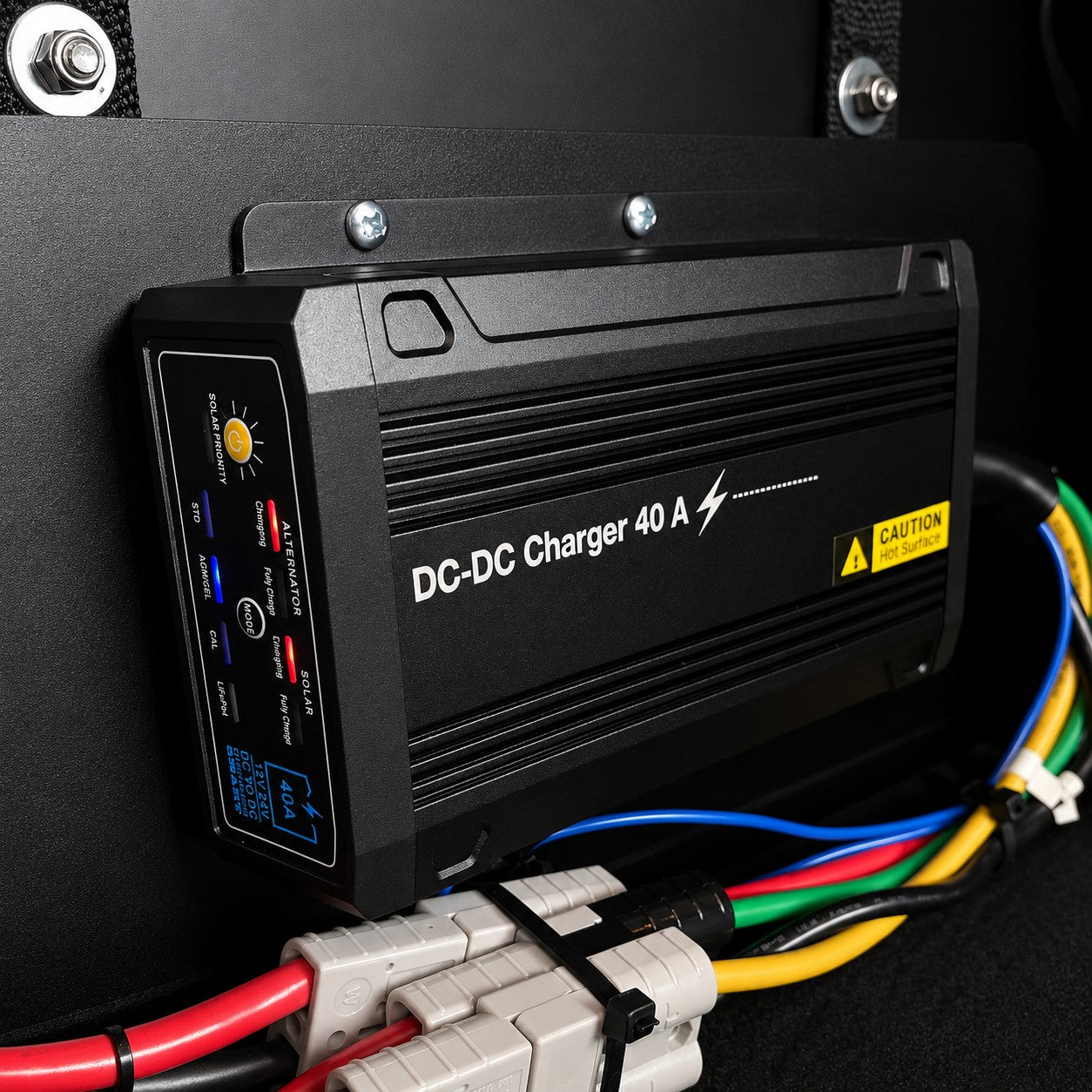

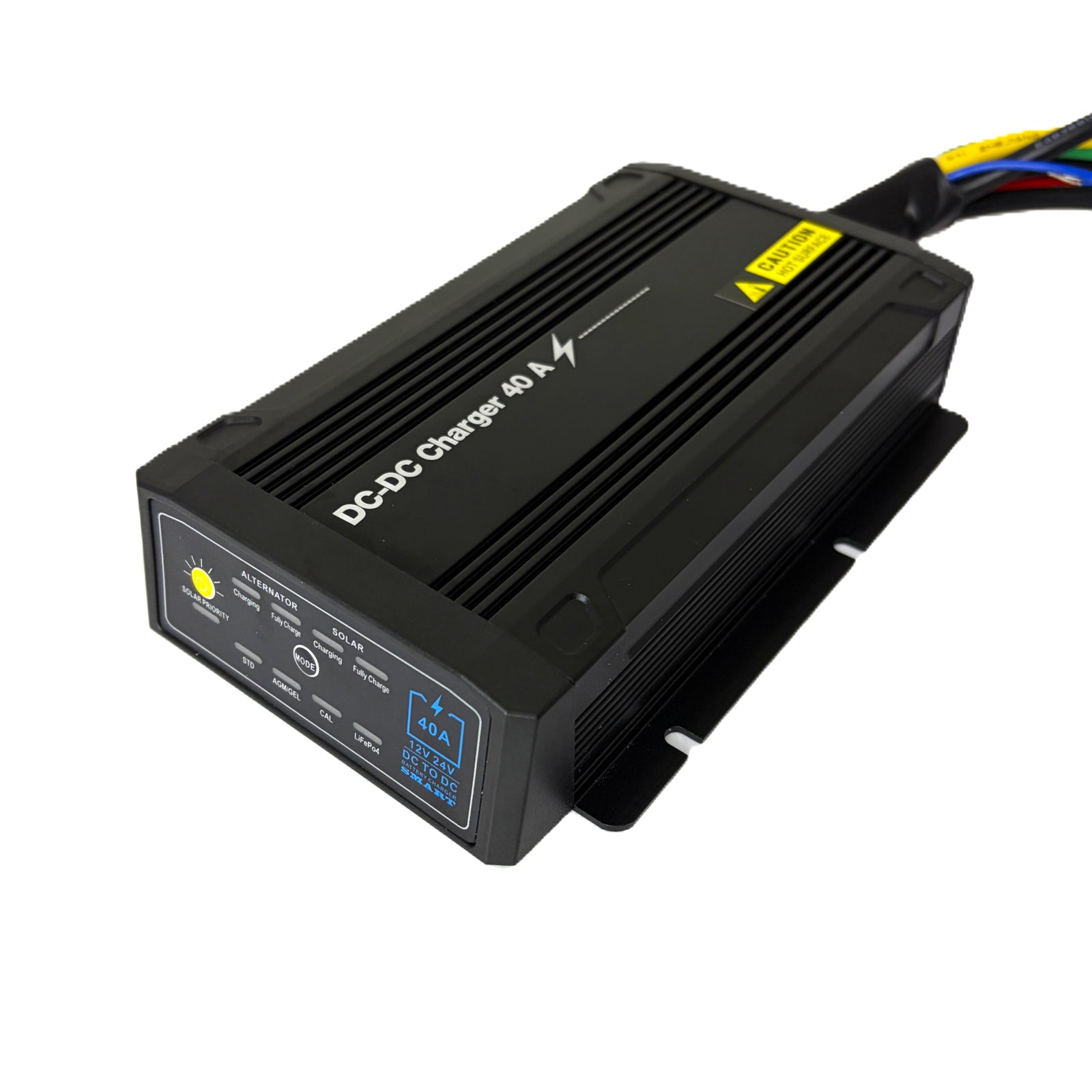

A DC/DC charger takes power from the vehicle starting system and applies a controlled charge profile to an auxiliary battery. This is important with LiFePO4 and with vehicles whose alternator voltage varies. Charger current should be selected according to both the battery's allowable charge rate and the alternator's spare capacity. Input and output cables require proper sizing and protection. A programmable VSR can be used in some systems to enable the charger only when source voltage is suitable. In winter, cold starting loads and reduced battery performance may leave less alternator margin immediately after engine start, so system design should allow for real operating conditions.
