Winch Equipment

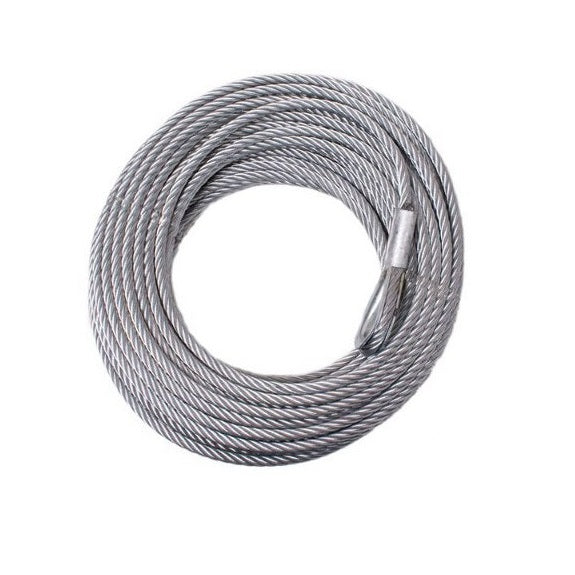

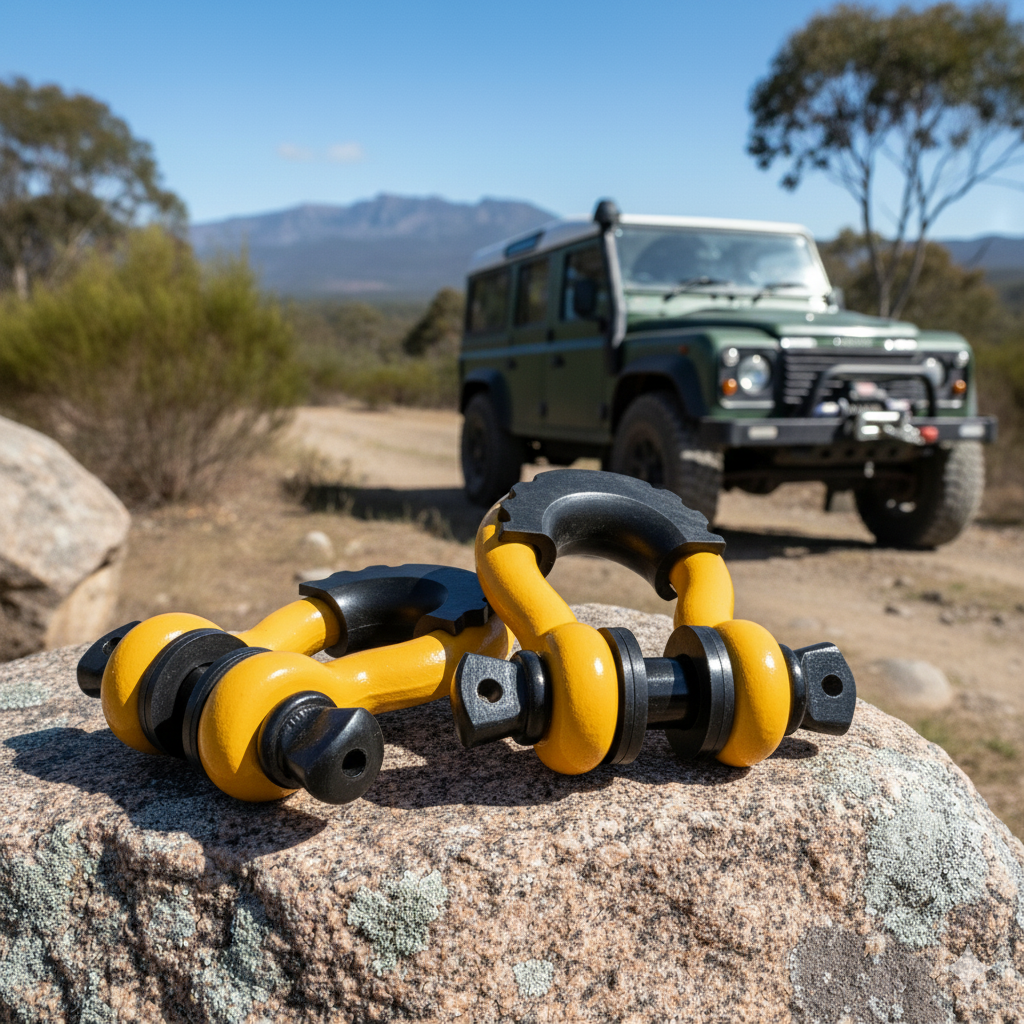

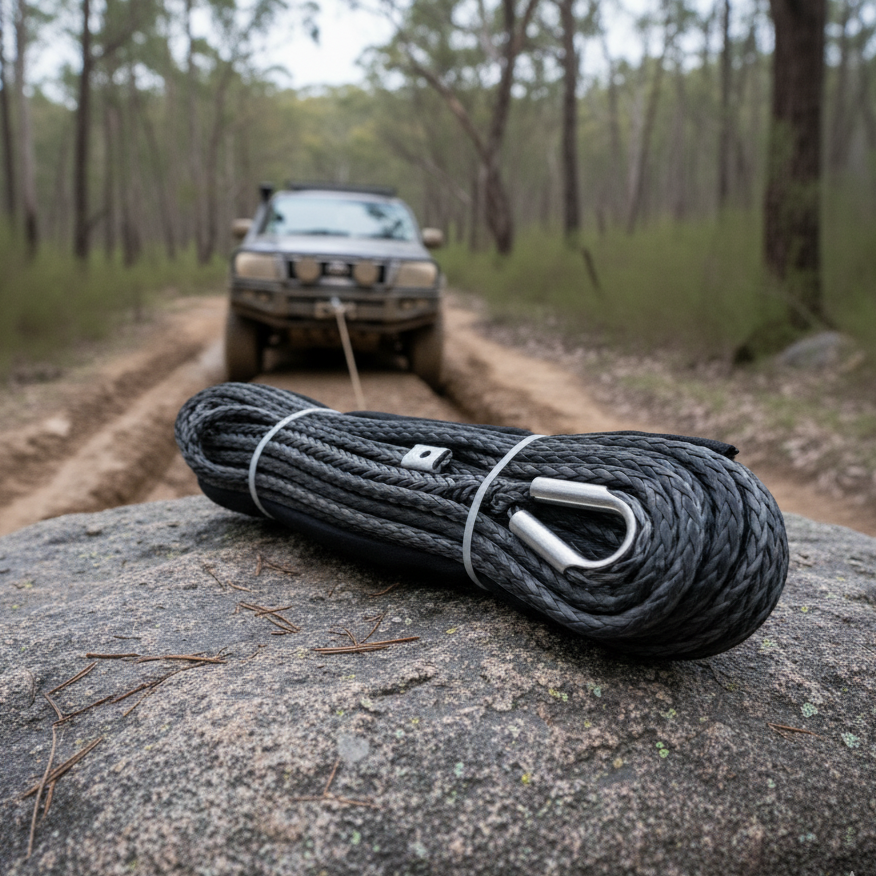

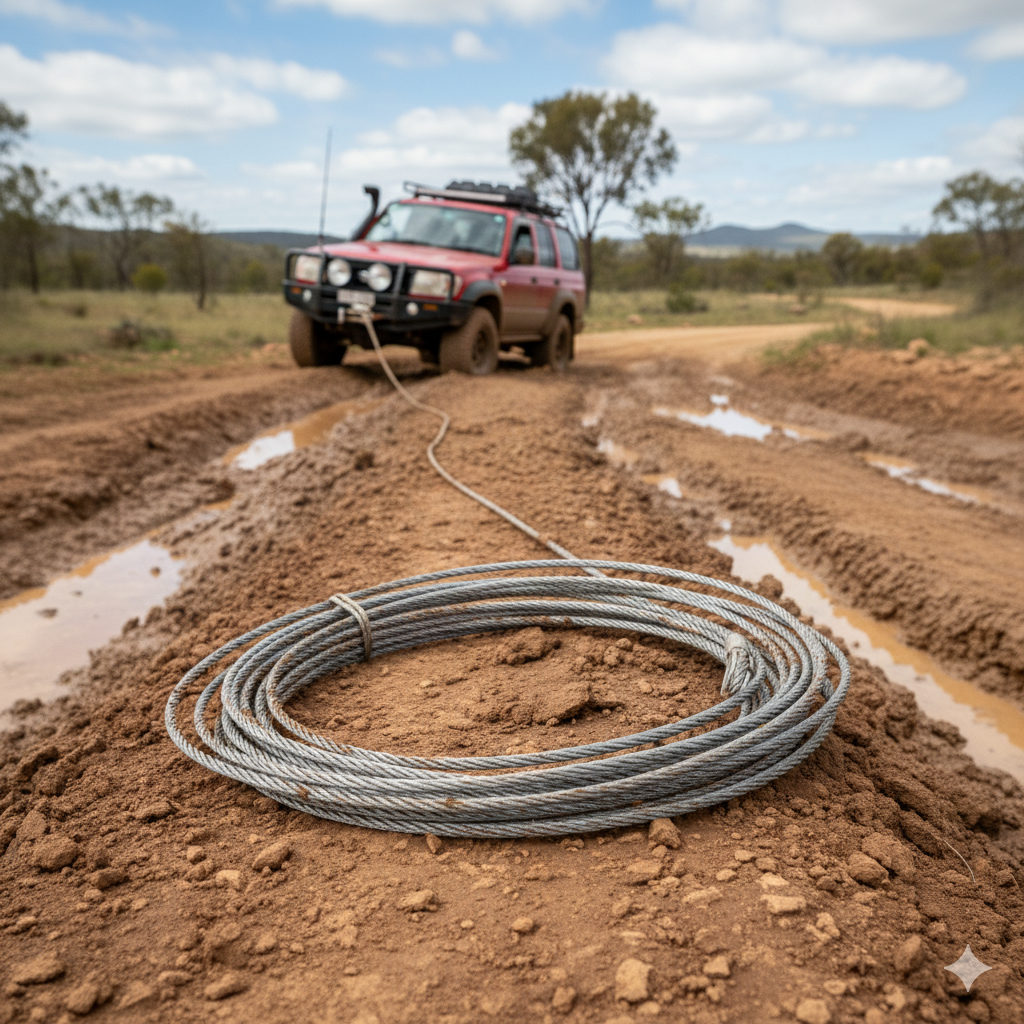

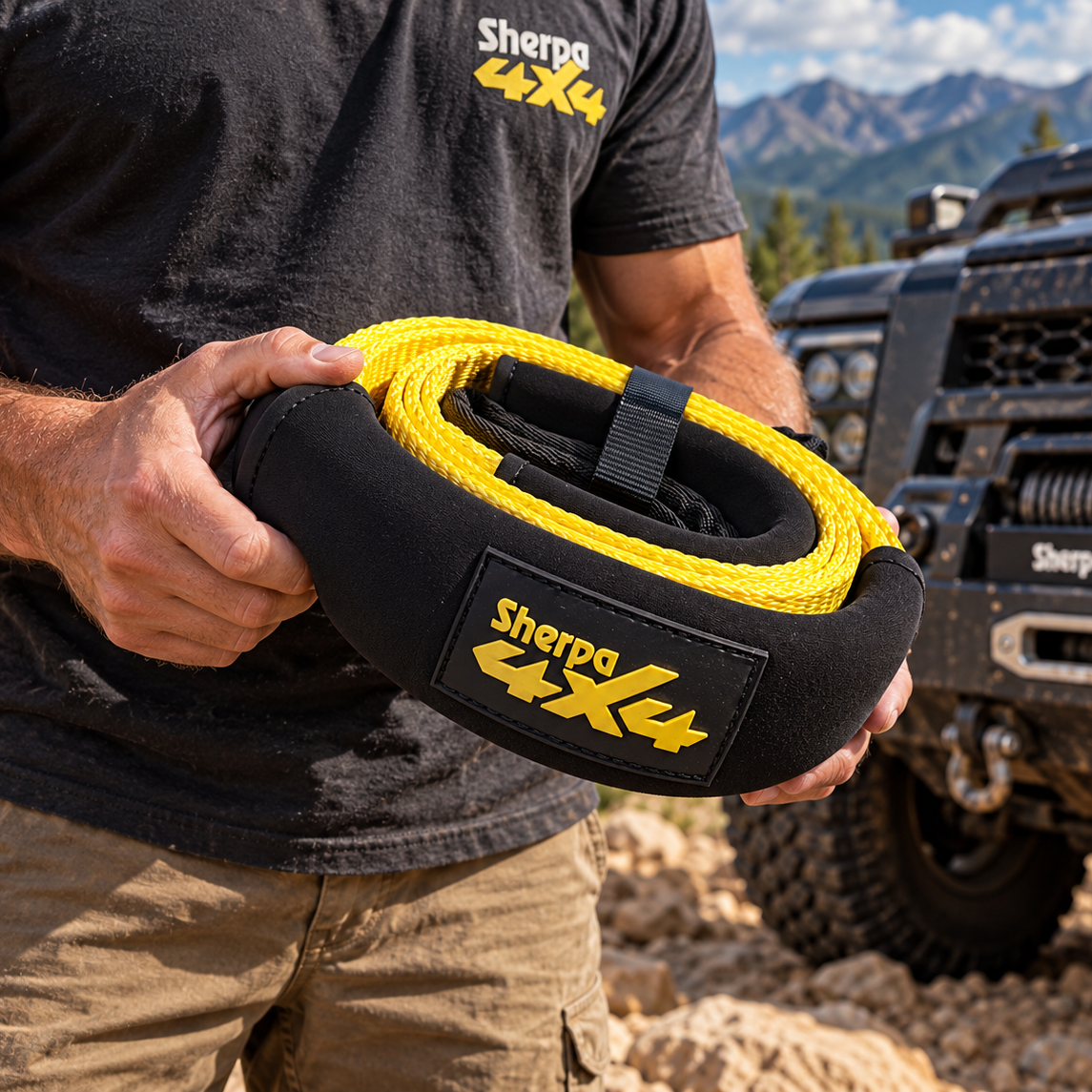

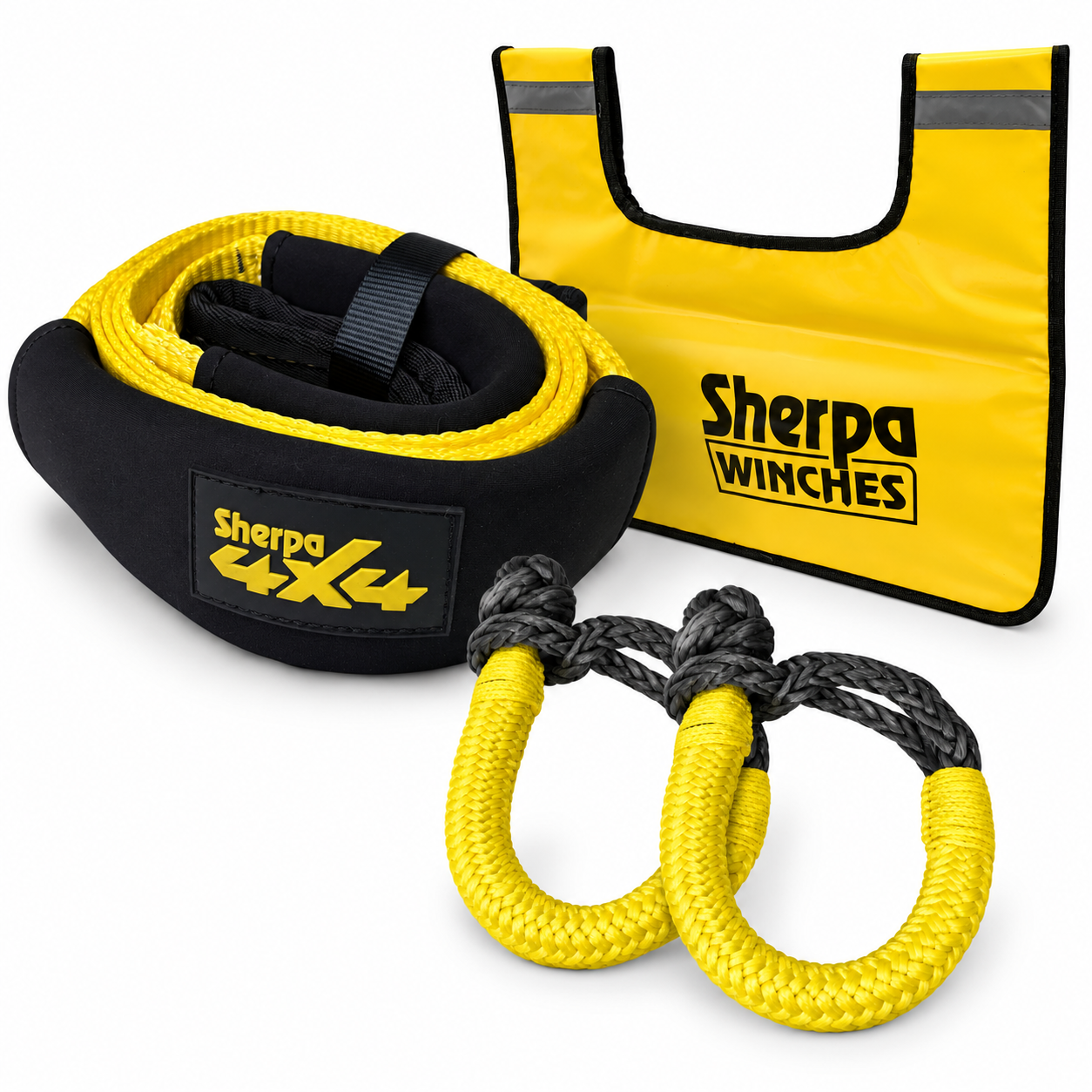

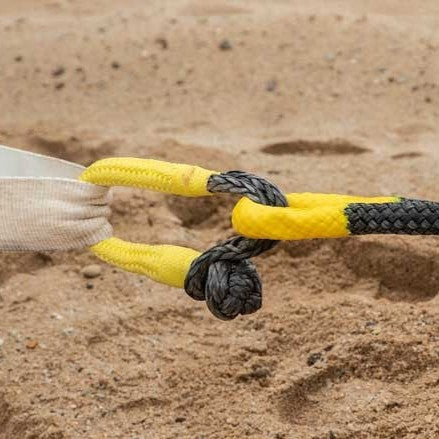

Carry a rated tree saver, soft or bow shackles, a winch damper, gloves and a device for redirecting the line or creating mechanical advantage, such as a snatch block or recovery ring. A winch extension is useful when the anchor is farther away than the rope length. If the winch uses synthetic rope, the hawse fairlead must remain smooth; steel cable requires an appropriate roller fairlead. A wireless remote improves visibility but a wired control should remain available. Every piece of rigging should have a rating suitable for the winch and vehicle, and the vehicle recovery points must be properly engineered.

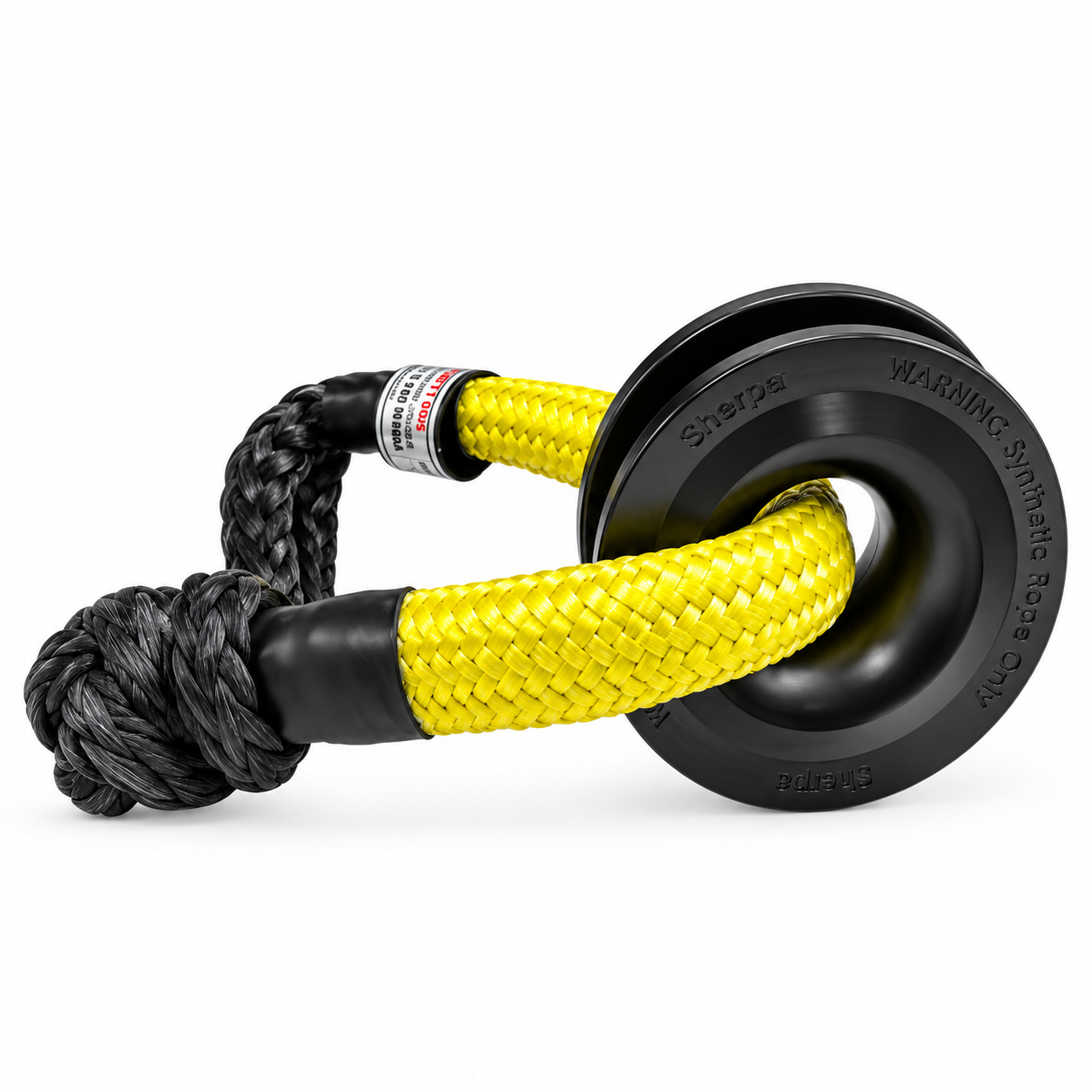

A recovery ring is compact, simple and well suited to synthetic rope and soft shackles. A traditional snatch block uses a rotating sheave and is often preferred when steel cable is used or when very low rolling resistance is desirable. Both can change pulling direction or create a double-line setup. Choose from the winch line type, required rating and recovery geometry. In freezing weather, a recovery ring has no bearing mechanism to fill with water or ice, but the synthetic line still needs to be kept clean. Whichever device is used, the anchor, connector and vehicle point must be rated for the resulting loads.

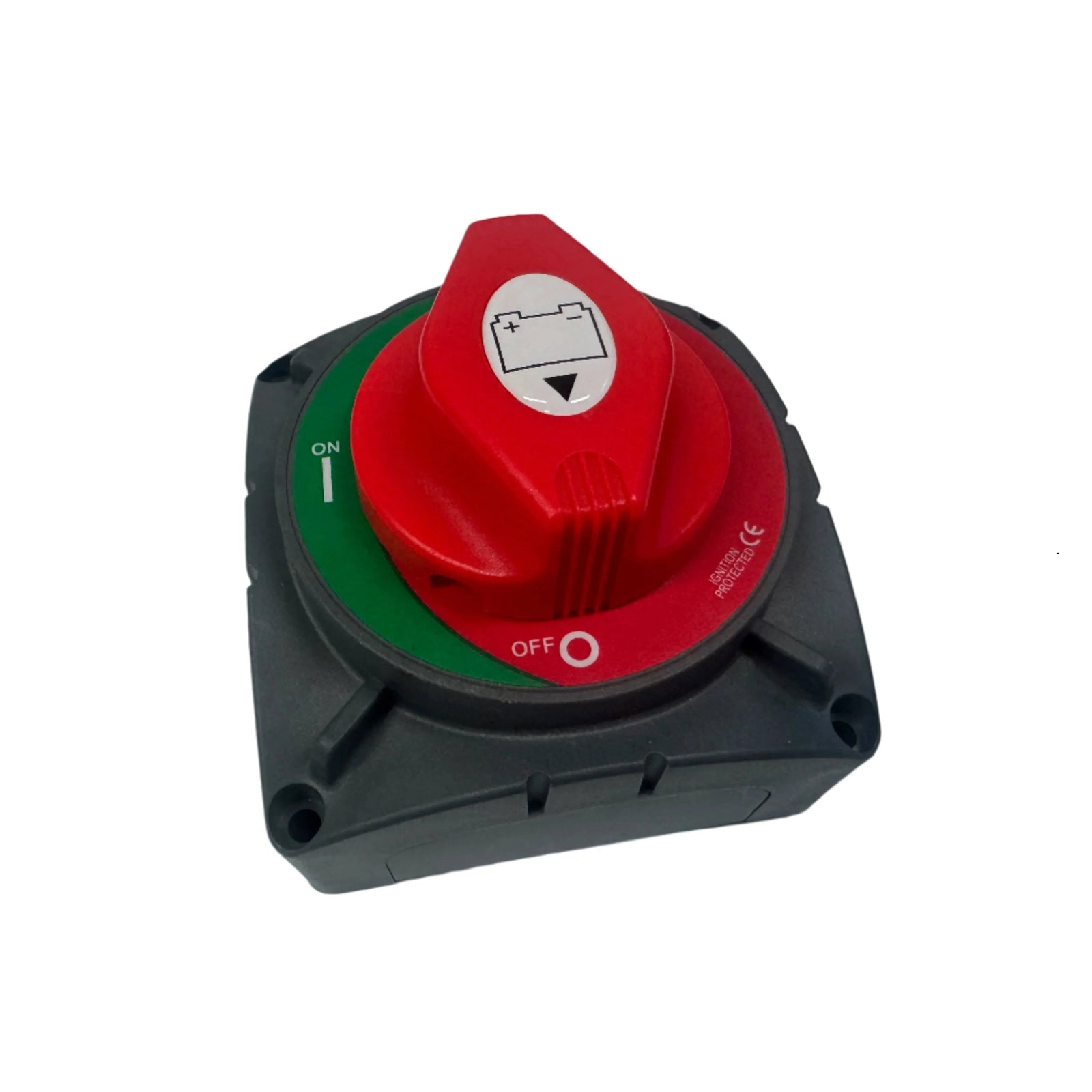

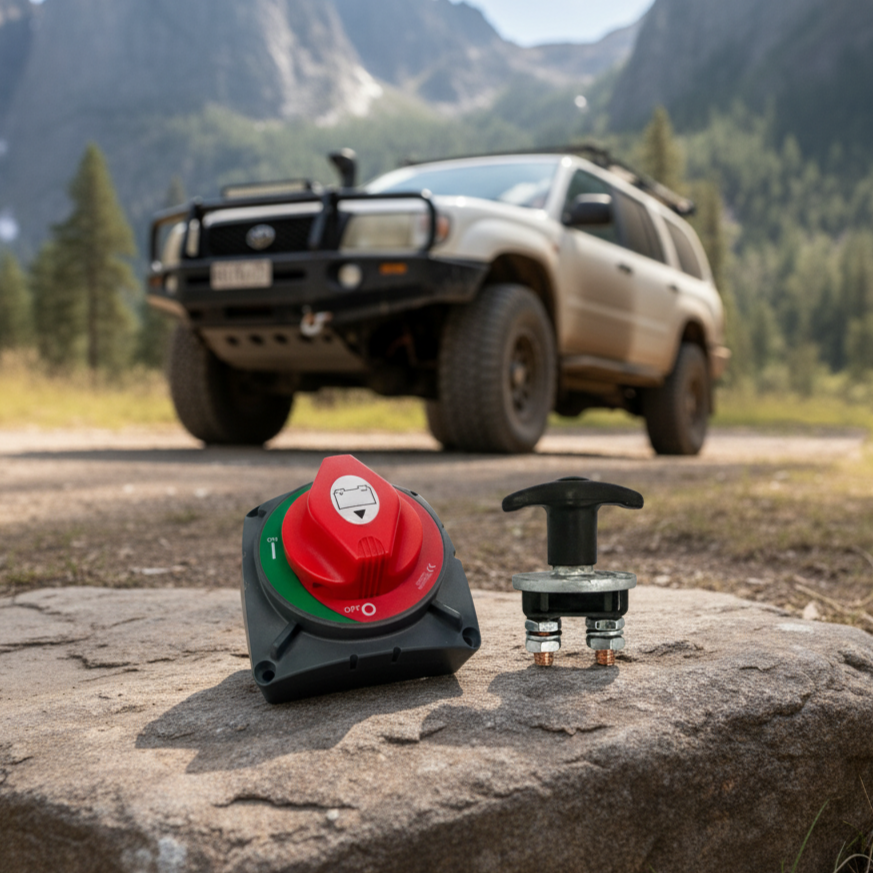

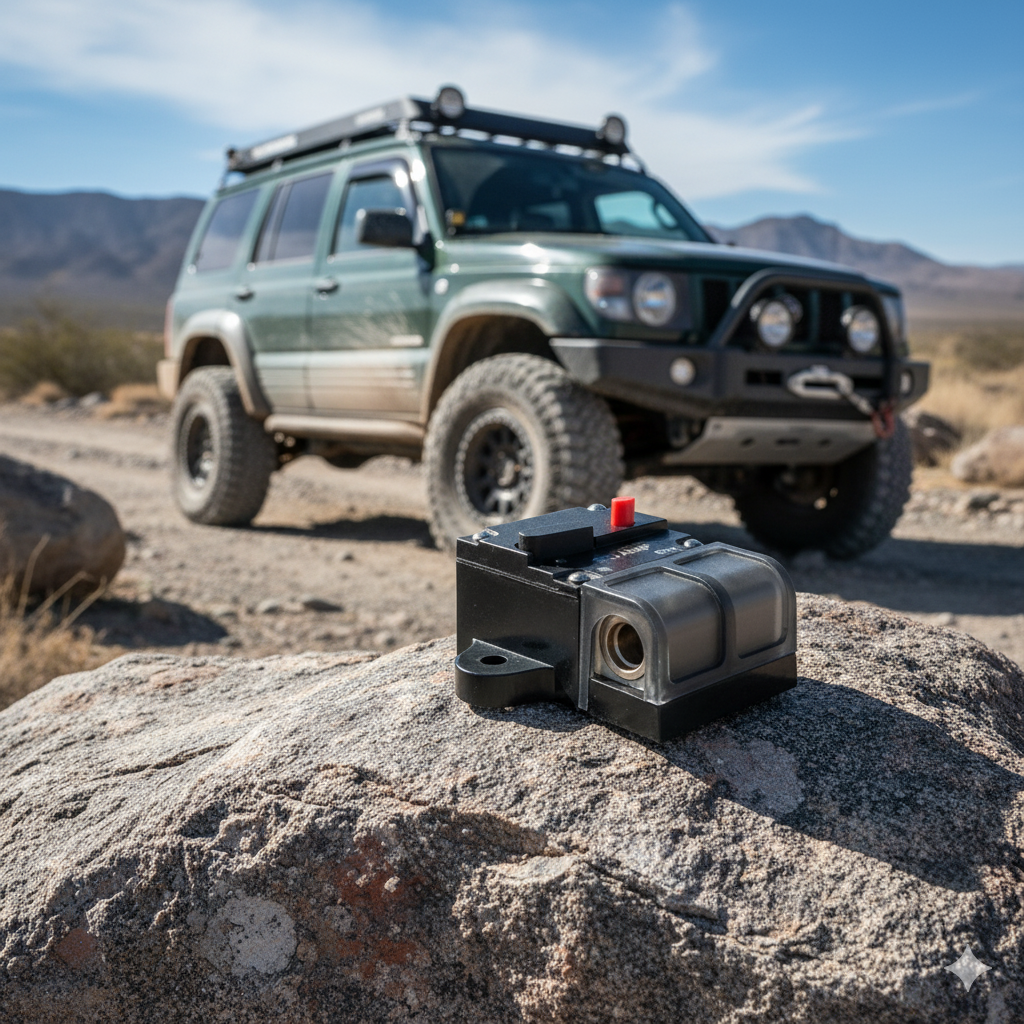

A high-current isolator lets the winch cable be disconnected when the winch is not needed or when service work is being performed. This reduces the amount of permanently live heavy cable routed through the vehicle and can help isolate a damaged front-end circuit after a collision. The switch must be rated for the system's DC voltage and high winch current. Install it where it is accessible but protected from accidental operation. In winter, periodically operate and inspect the isolator because road salt and moisture can corrode exposed terminals and increase resistance.

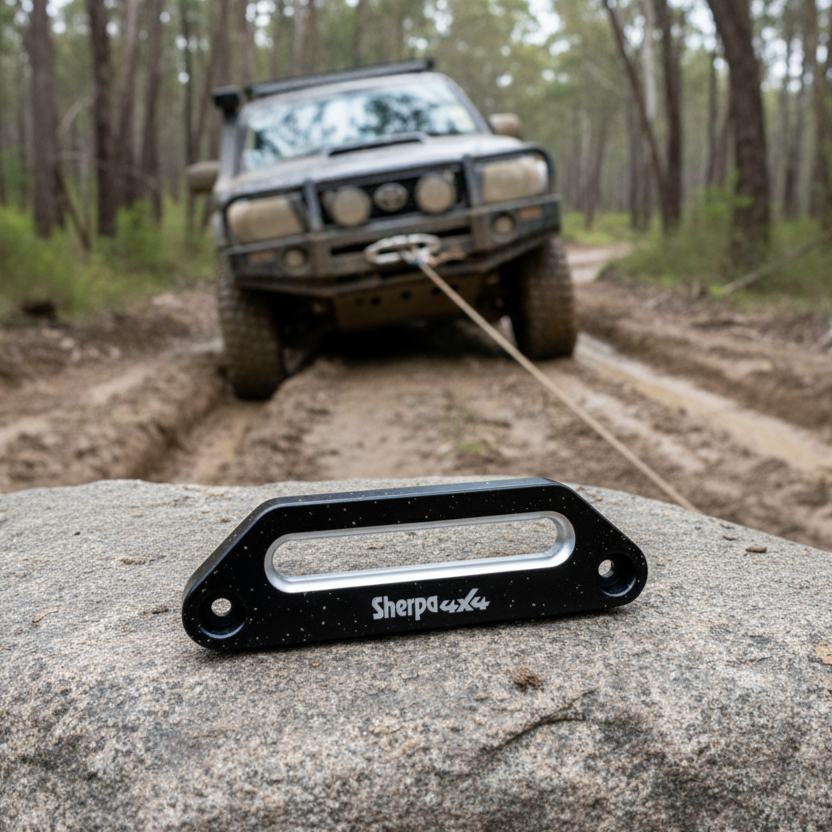

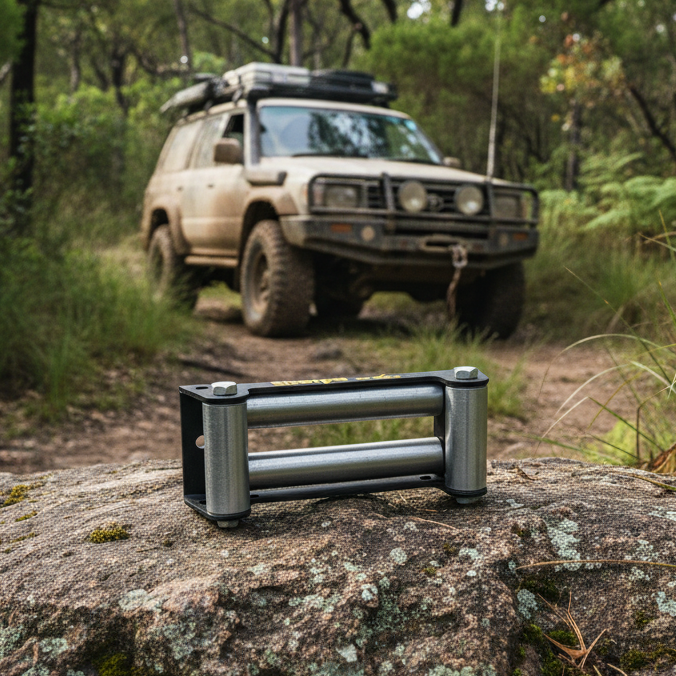

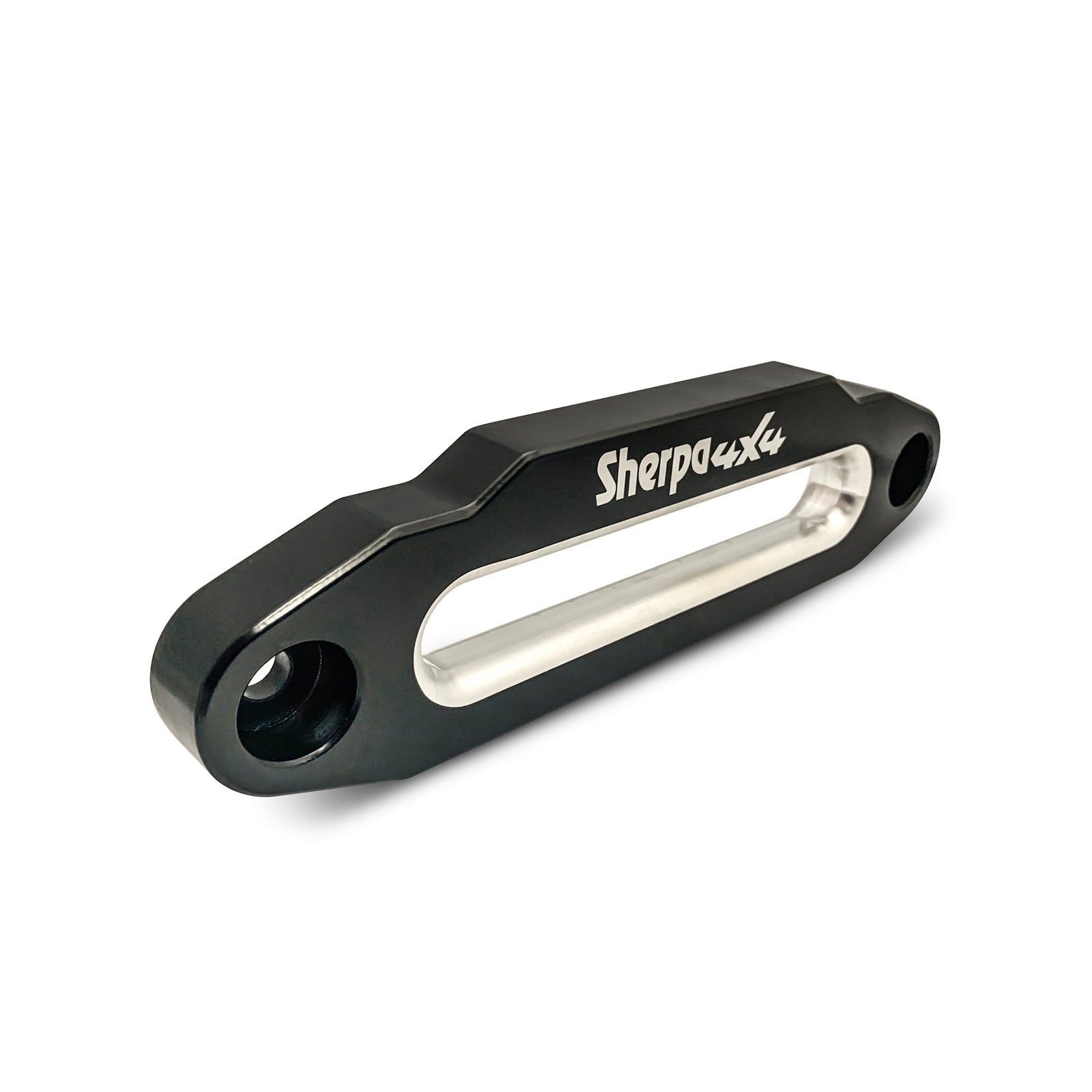

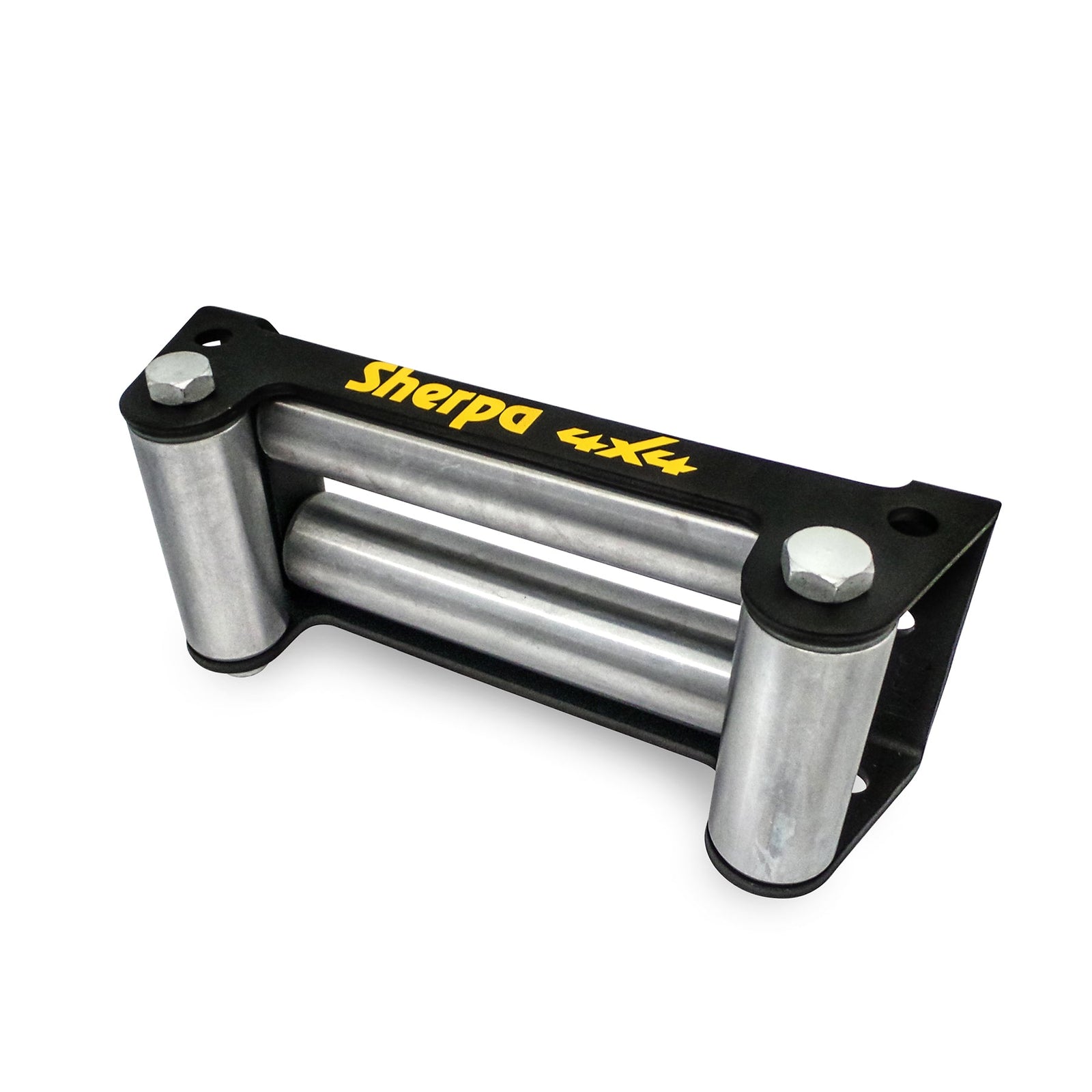

Replace or repair a fairlead when the surface that contacts the line is damaged. A hawse fairlead with deep scratches or burrs can cut new synthetic rope very quickly. Roller fairleads should rotate freely and not have sharp grooves, seized rollers or bent pins that crush steel cable. Inspect the fairlead after any hard side pull or front-end impact. In winter, clean away ice and salt rather than forcing rope across a rough frozen surface. When replacing winch rope, inspect the fairlead at the same time so the cause of previous wear is not carried over to the new line.

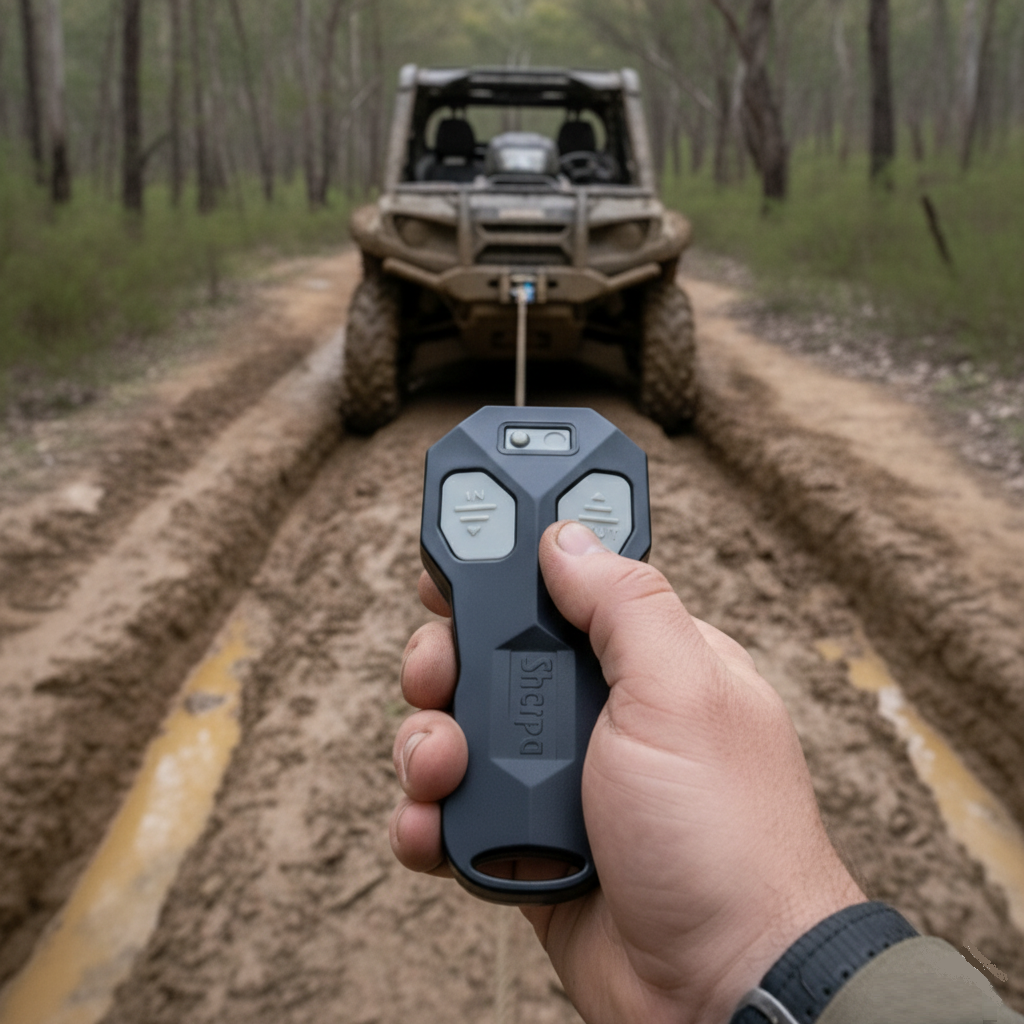

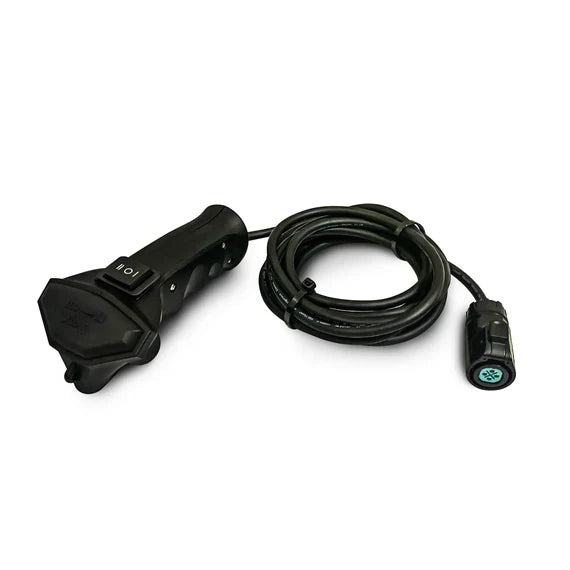

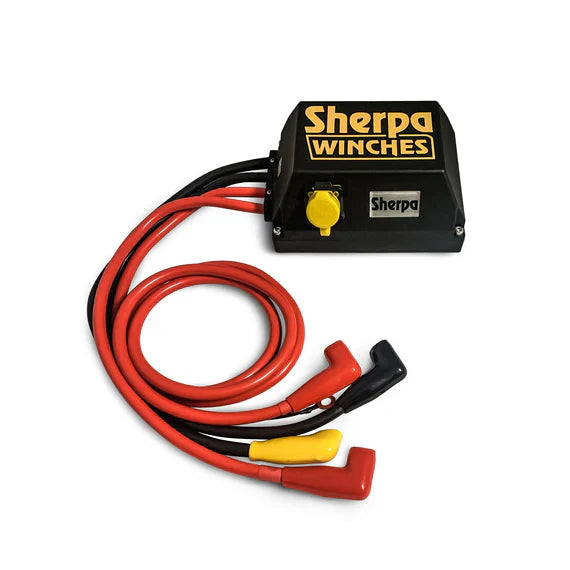

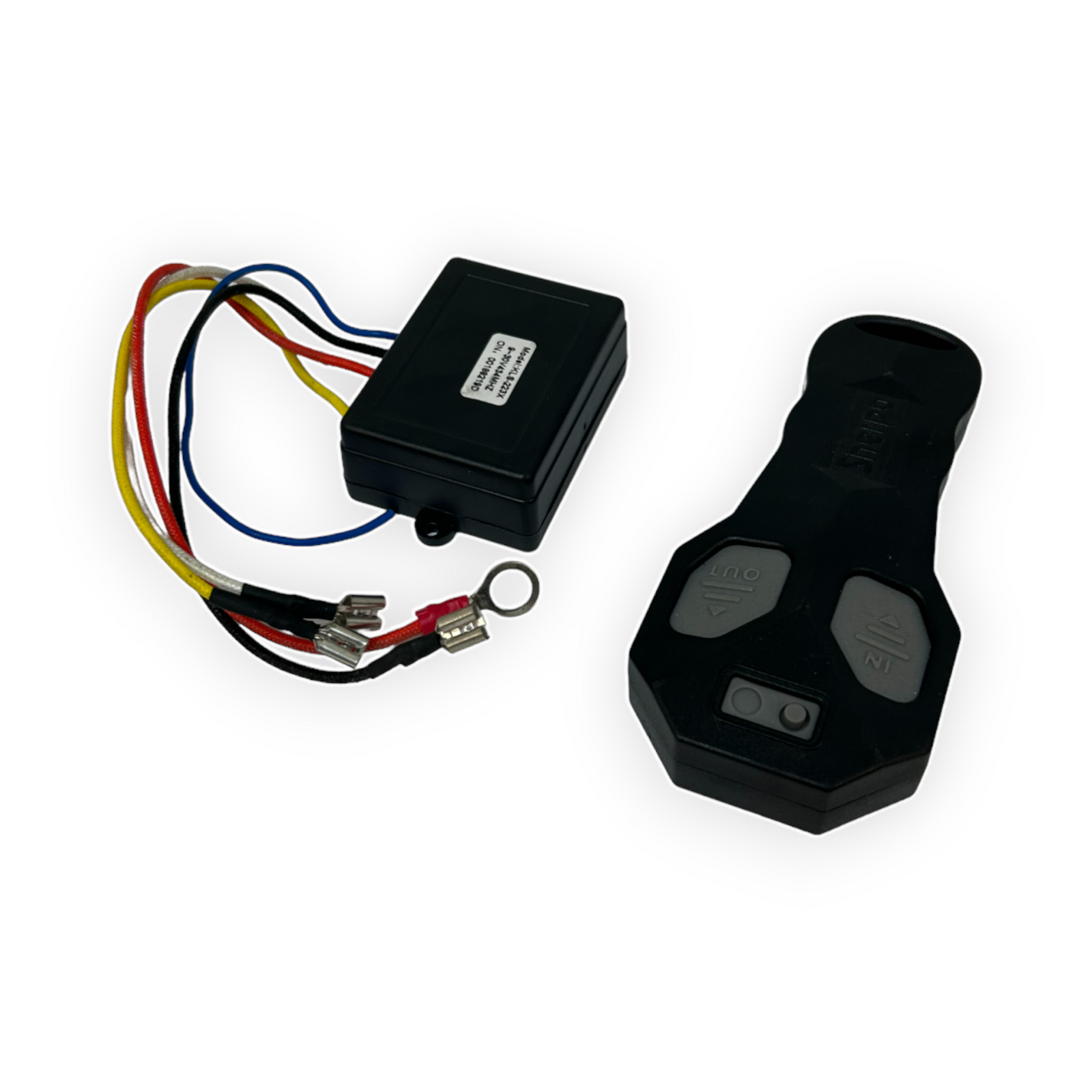

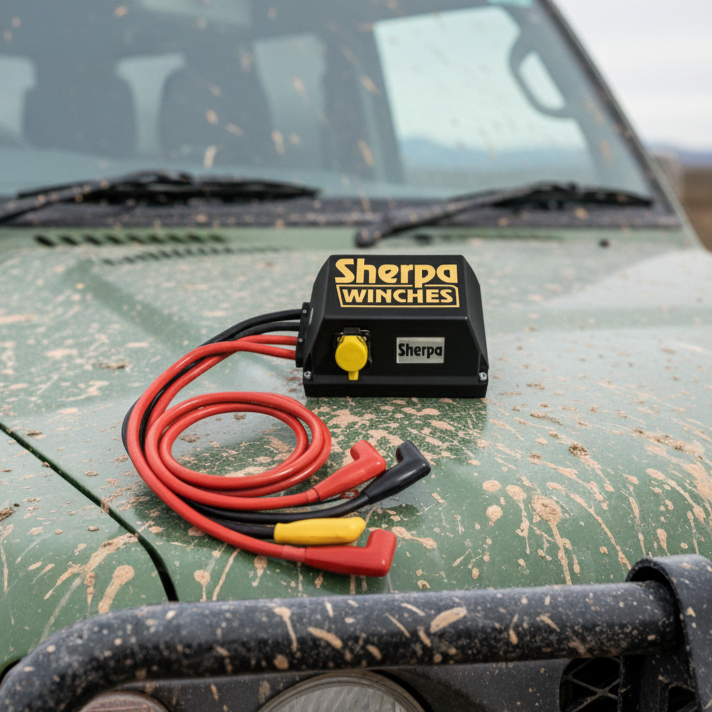

Often, but compatibility depends on the exact control system and winch generation. Sherpa uses different remote sockets and contactor arrangements across 4x4, ATV, boat and commercial winches. Check the model, system voltage and existing control plug before ordering. Some wireless kits plug into the remote socket, while others require a receiver to be wired into the control box. After installation, test IN and OUT direction unloaded and confirm the wired remote still functions. Wireless control is convenient in snow or mud because the operator can stand where the line is visible, but it should not be the only means of control.
