Winch Spare Parts

Start with the exact winch model and voltage. The Mustang, Brumby, Colt, Steed, Stallion, Mule, ATV, Grunter and tow-truck winches use different motors, gearboxes, brakes and controls. A replacement that physically bolts on may still have the wrong power, shaft, gear ratio or terminal layout. Photograph the winch label, motor terminals, remote socket and gearbox side before ordering. For an older winch, include the approximate purchase date and any visible part number. Voltage is critical: 12V and 24V motors or contactors are not interchangeable simply because the housings look the same.

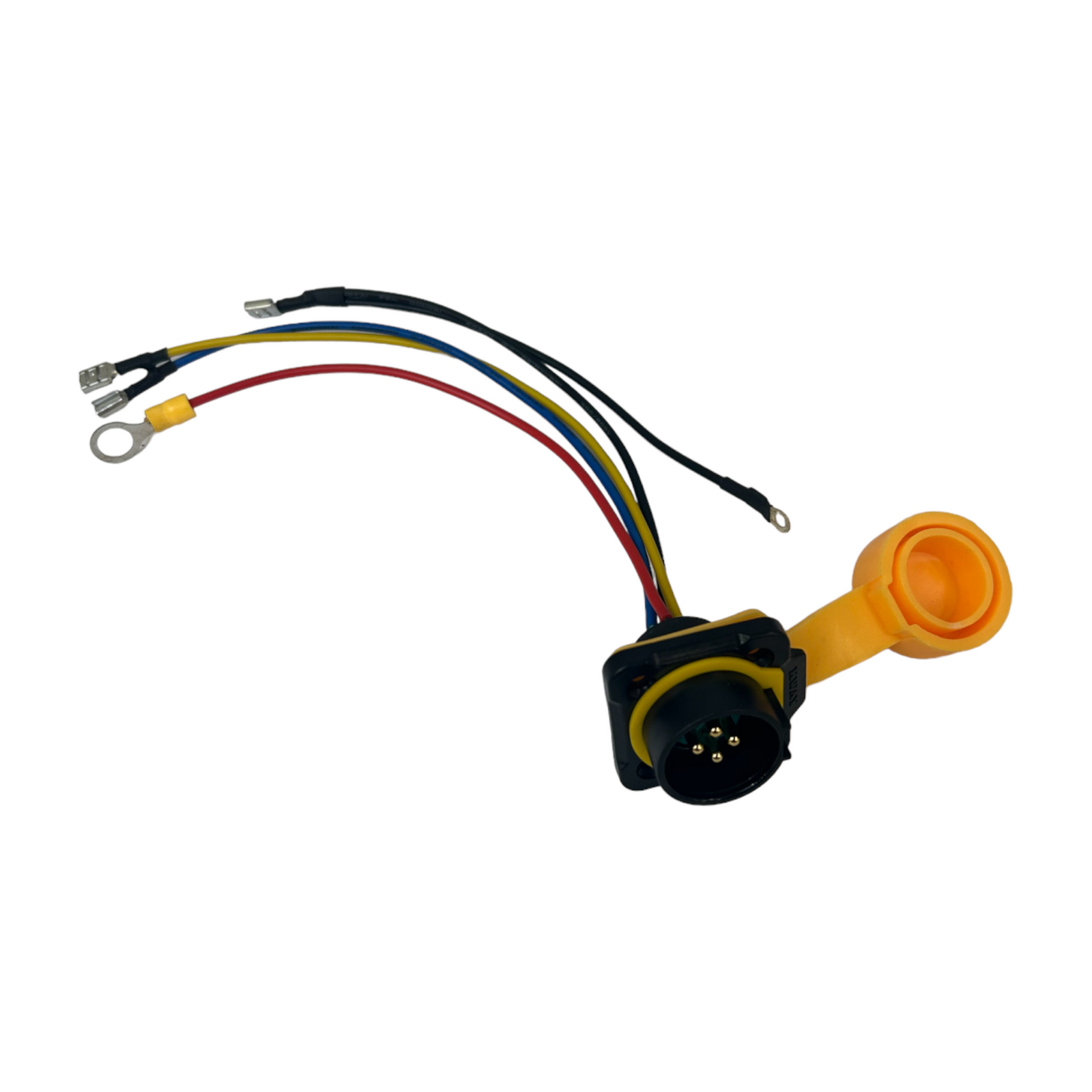

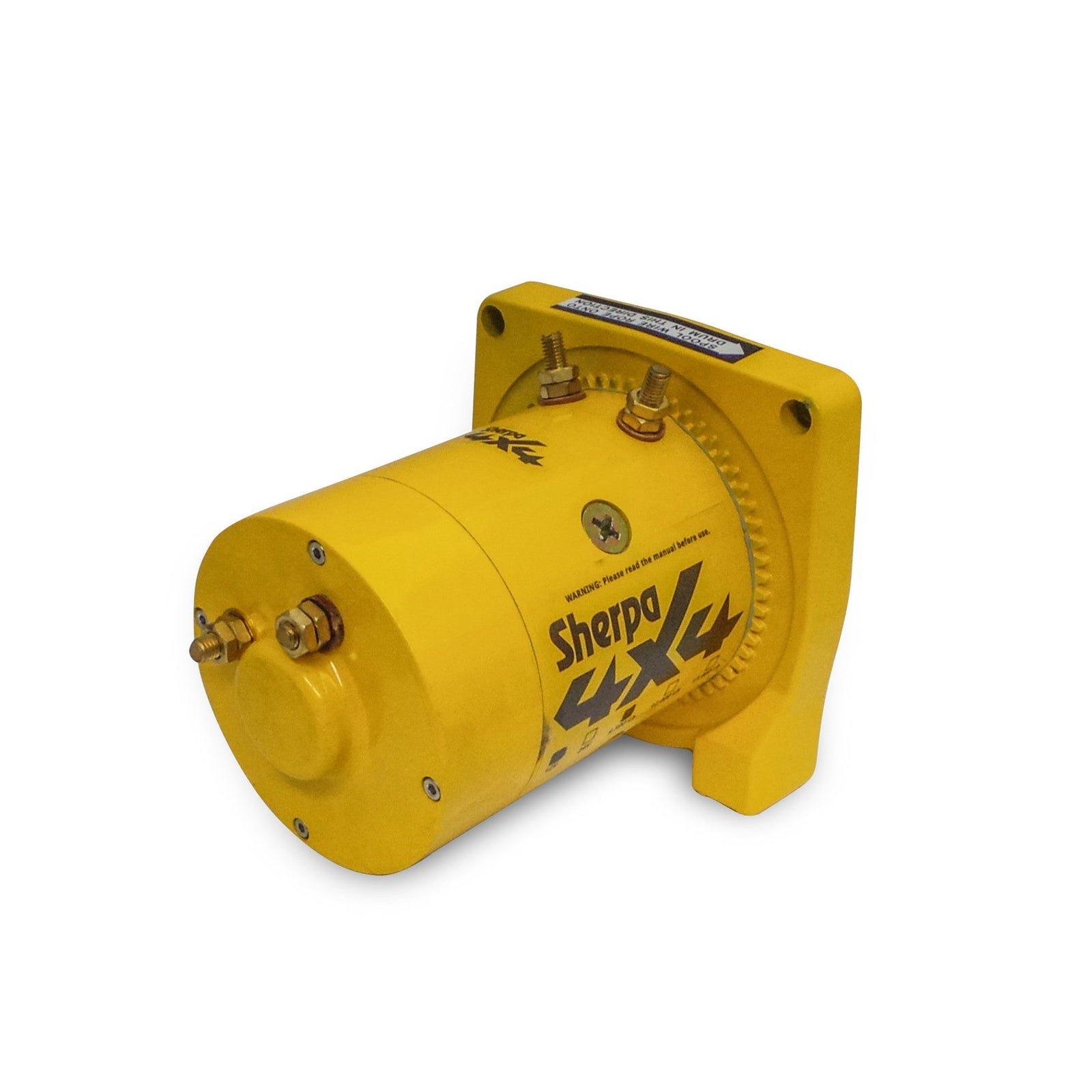

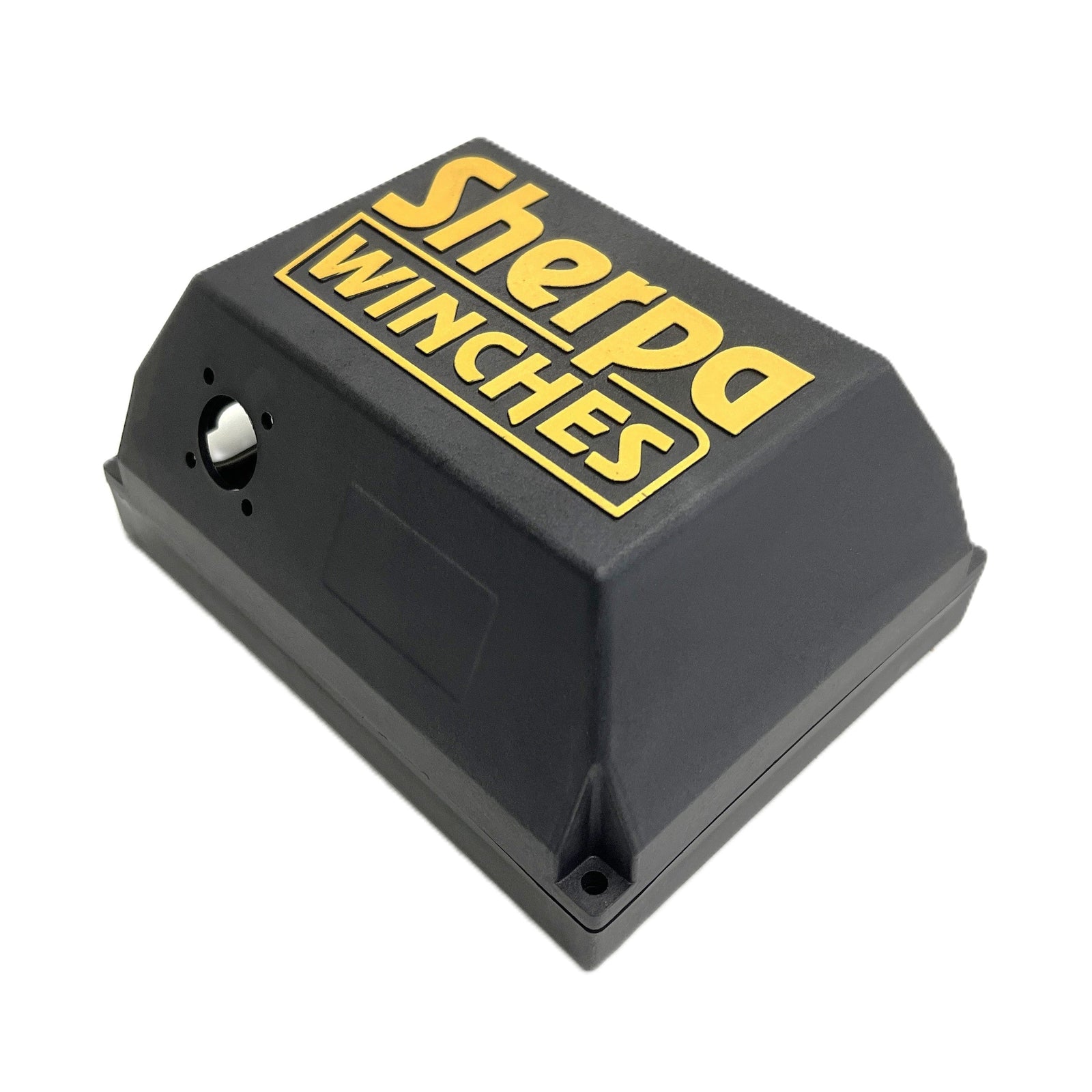

Check battery voltage and cable connections first because poor supply can mimic both faults. If the solenoid clicks but the motor does not run, measure voltage at the motor while the control is pressed. Full battery voltage with no movement points toward a motor or internal mechanical problem; little or no output from the contactor points toward solenoid or control wiring. A winch that works in only one direction often has a contactor or control fault. In winter, also inspect for corrosion or moisture in the remote socket and connections before replacing expensive components.

Inspect the fairlead whenever the rope is replaced. A scratched or burred hawse can cut a new synthetic rope quickly, while seized or heavily grooved rollers can damage steel cable. Replace synthetic rope for deep cuts, melted fibres, severe abrasion or local thinning. Replace steel cable for broken wires, crushing, severe kinks or corrosion. Canadian road salt can hide between tightly packed cable wraps, so unwind and inspect the full length periodically. Clean the drum before installing new rope and respool it under controlled tension.

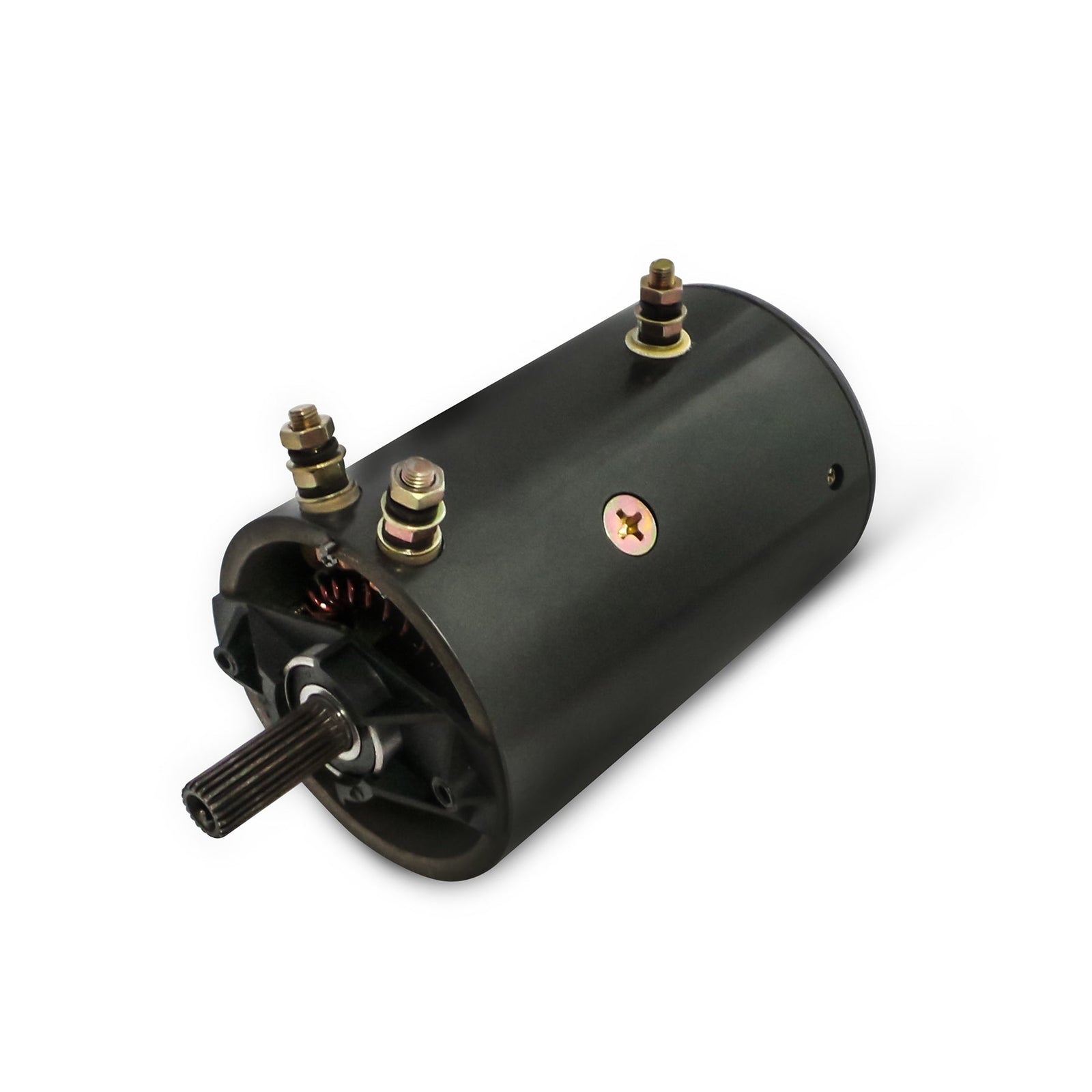

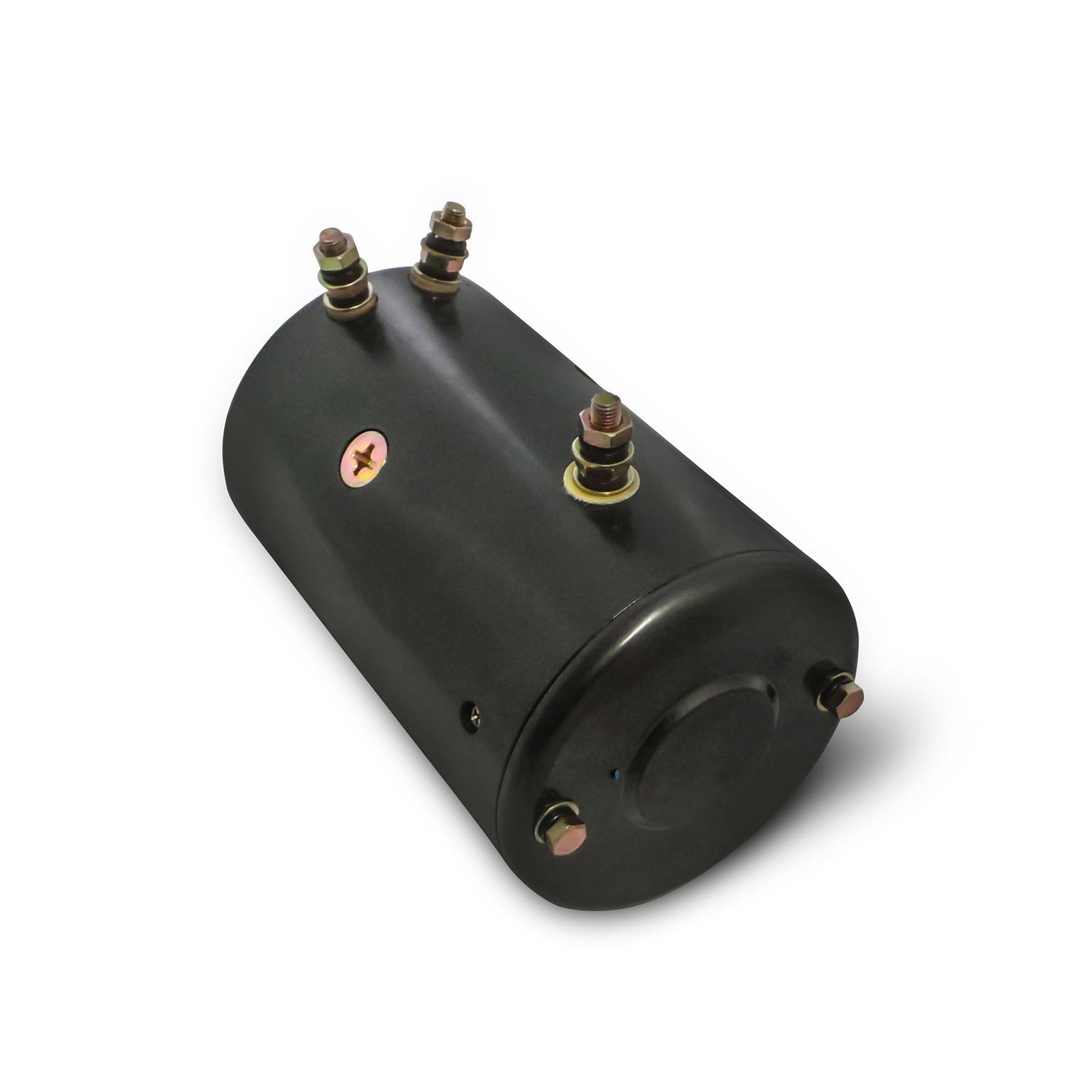

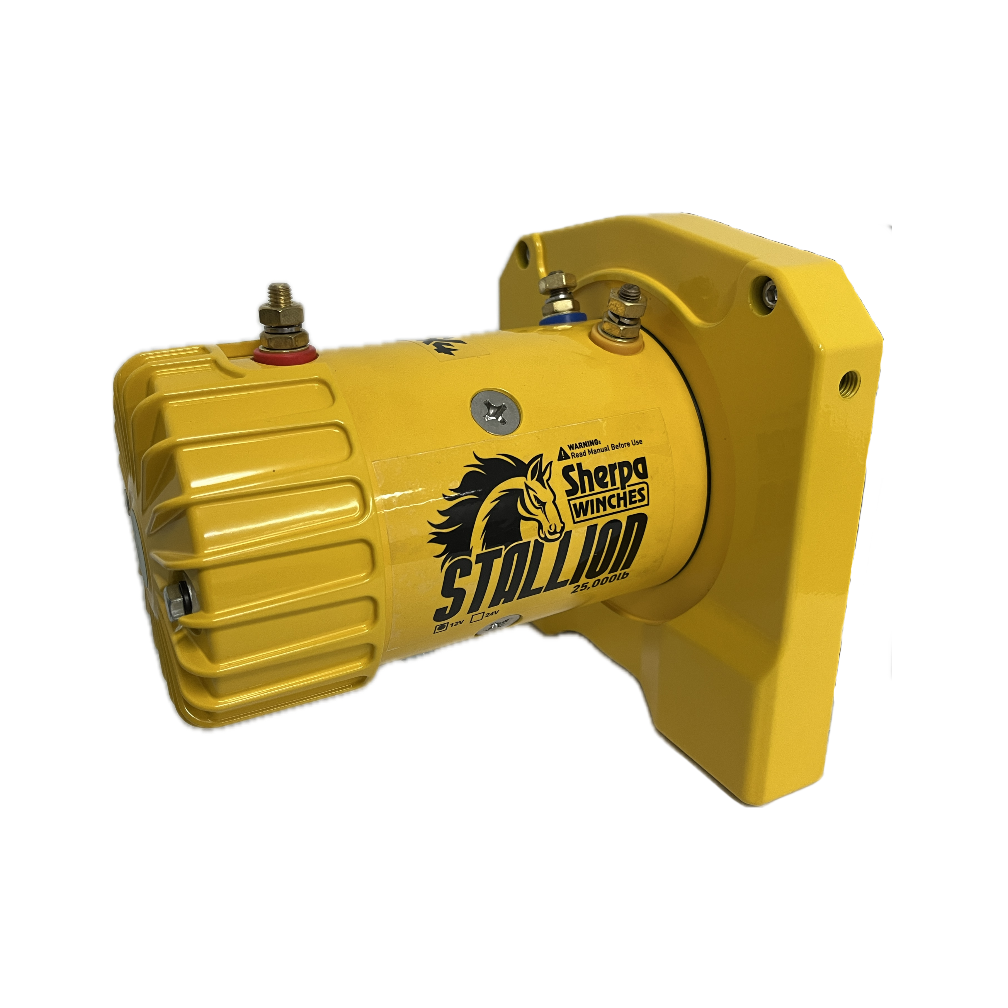

Only when the upgrade is specifically confirmed as compatible. A more powerful motor can draw more current than the original solenoid, cables or battery system were designed to carry and can apply greater torque to a gearbox or brake designed around the original drive. Treat the change as a system modification rather than a bolt-on performance upgrade. If an older winch needs major work, inspect the gearbox, brake, drum, rope and electrical system before deciding whether an upgrade is economical. Rebuilding around one worn major component can be false economy.

Carry parts that can realistically be replaced in the field: the correct wired remote, spare remote battery, suitable fuses, basic terminal hardware and perhaps a model-specific control plug. A full motor or gearbox is heavy and usually impractical to change on a trail. Recovery redundancy is often more useful, so carry a winch extension, recovery ring or snatch block and soft shackles. In winter, add dry gloves and simple electrical cleaning supplies. Before leaving, test the winch under load, inspect the rope and clean the battery and control connections. Preventive maintenance is far more valuable than carrying a major spare for a fault that could have been found at home.
