Tow Hitch Link

SWHRGY

PRICE INCLUDES FREE CANADIAN SHIPPING

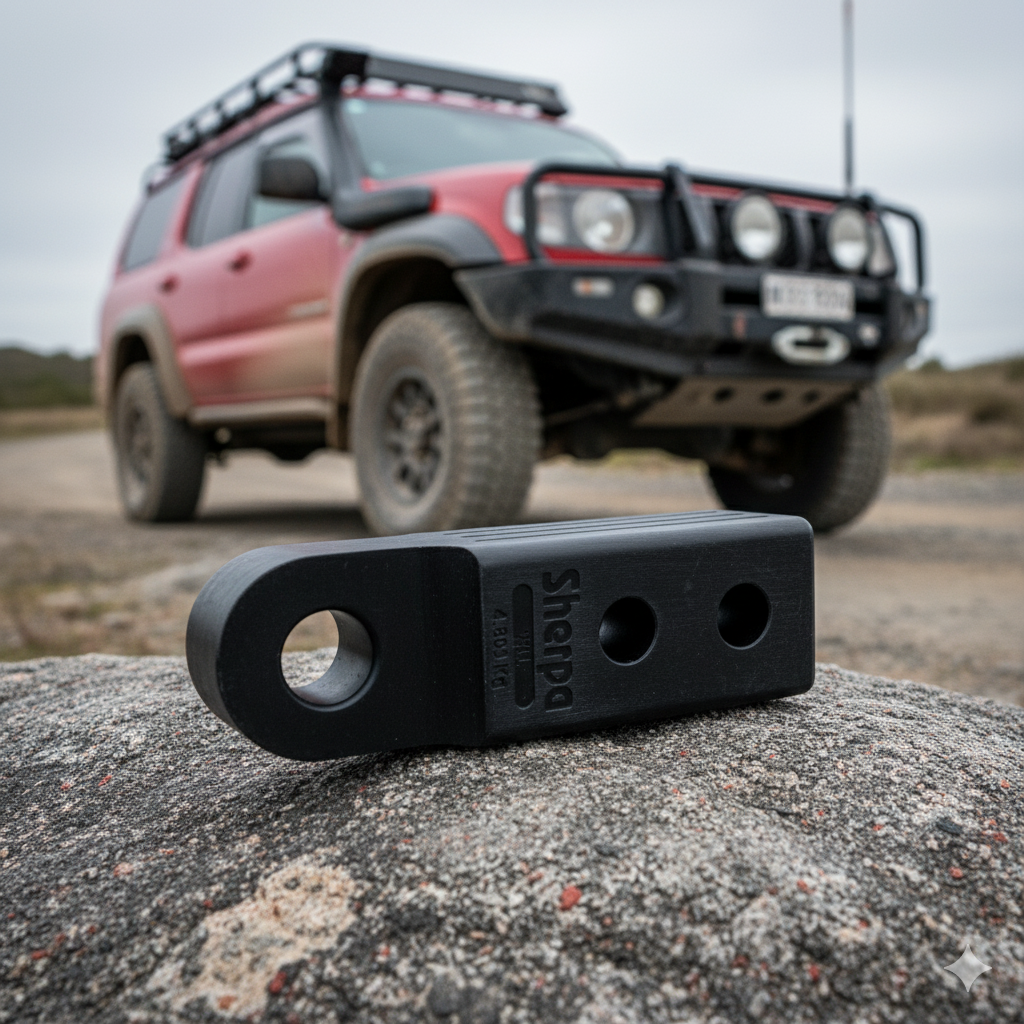

Sherpa recovery hitches are a safer alternative to use for vehicle recoveries when compared to using your tow ball. These are a highly recommended accessory for anyone going offroad.

  • Tow Hitch Link

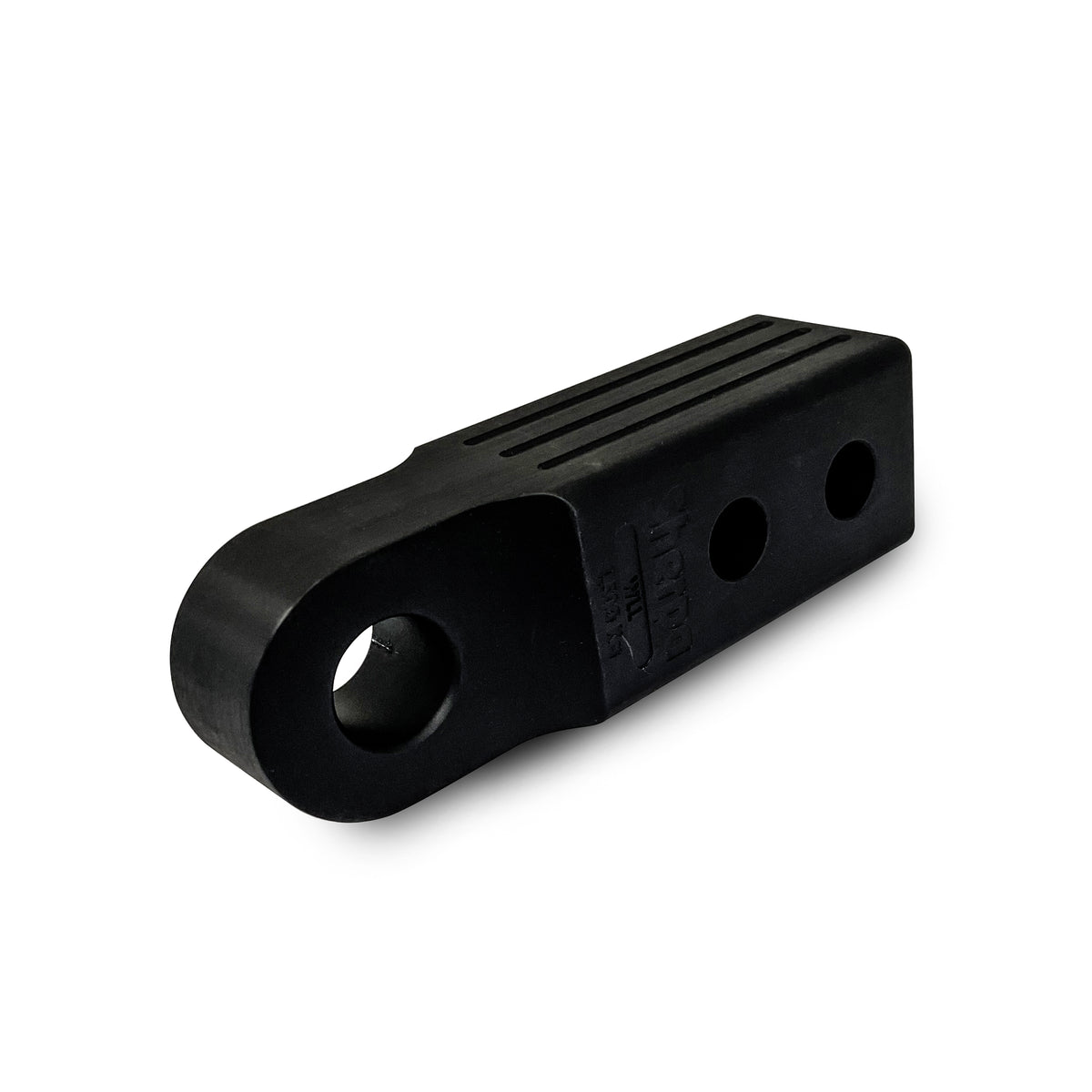

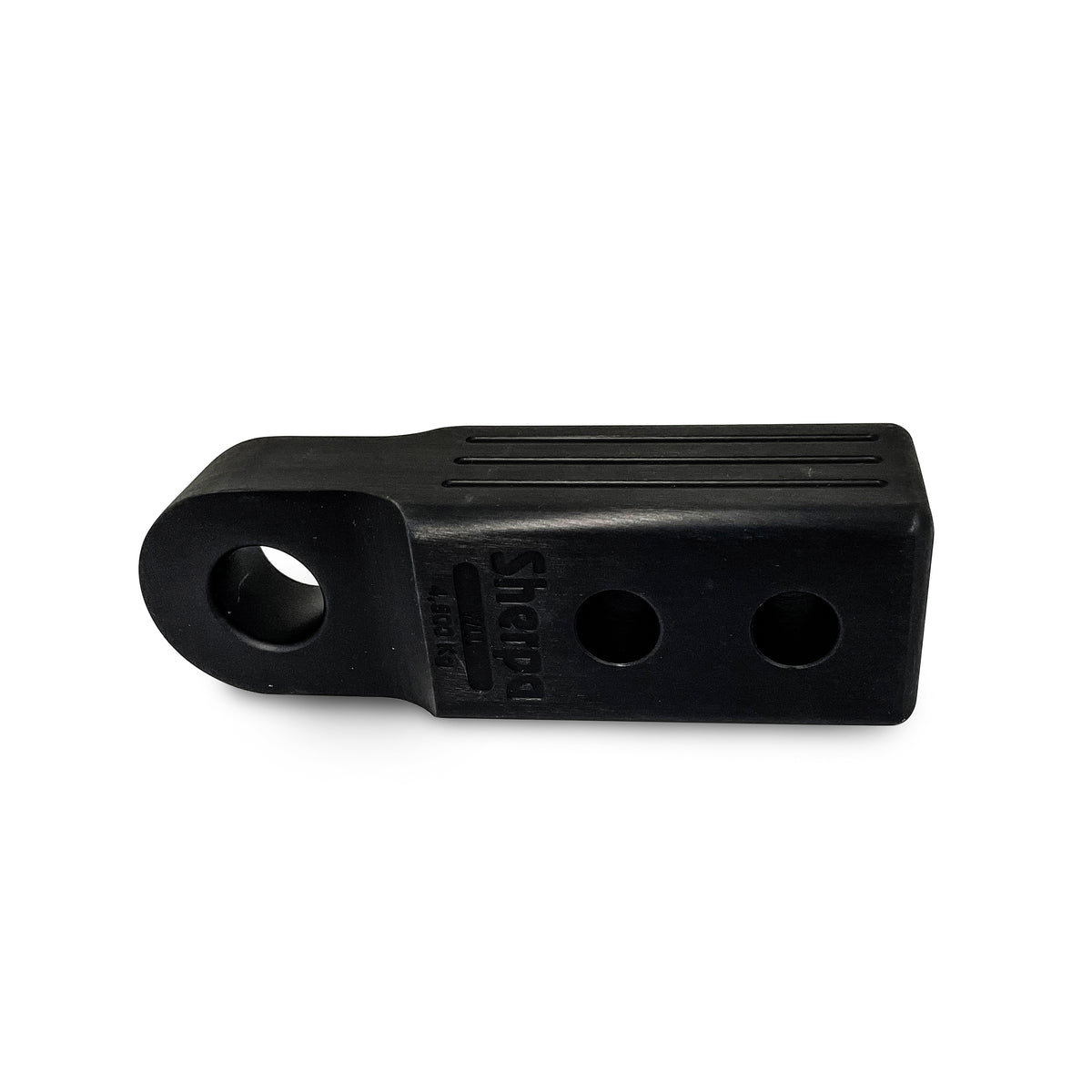

    The Sherpa hitches are designed to fit common 2", 50 x 50mm vehicle receivers and offer a far safer fixing point over other commonly used options. Tow balls are not designed for snatch style recoveries and are known to break and turn into projectiles. Another common error is using the vehicles shipping tie down points as recovery points, these are not rated and can easily fail.

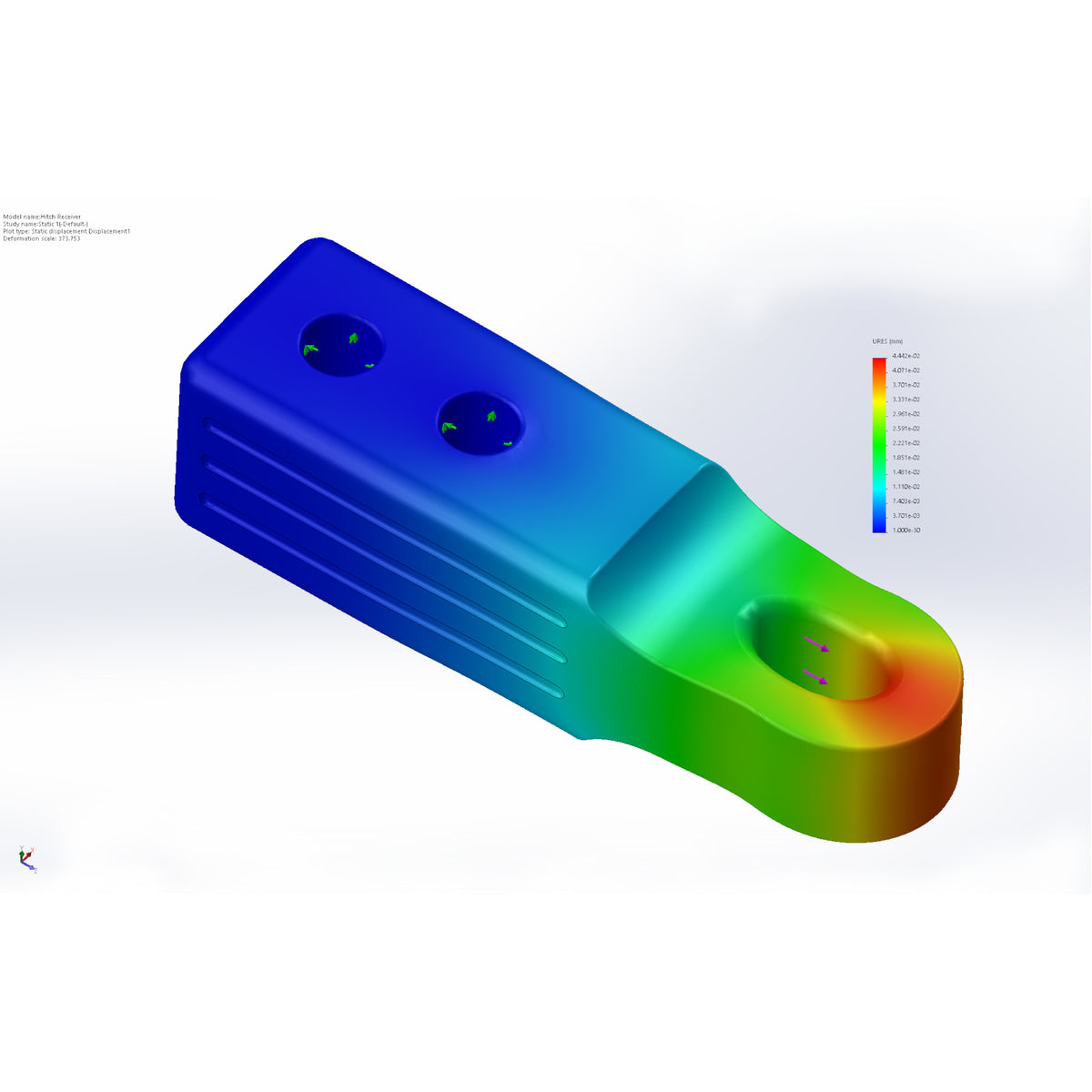

    The Sherpa tow hitch has not only been computer stress modelled, it has also had full destructive testing to ensure a safer design users can rely on. The units are manufactured from strong 6061 aluminum and are finished with a hard anodizing top coat which helps to delivery greater wear resistance.

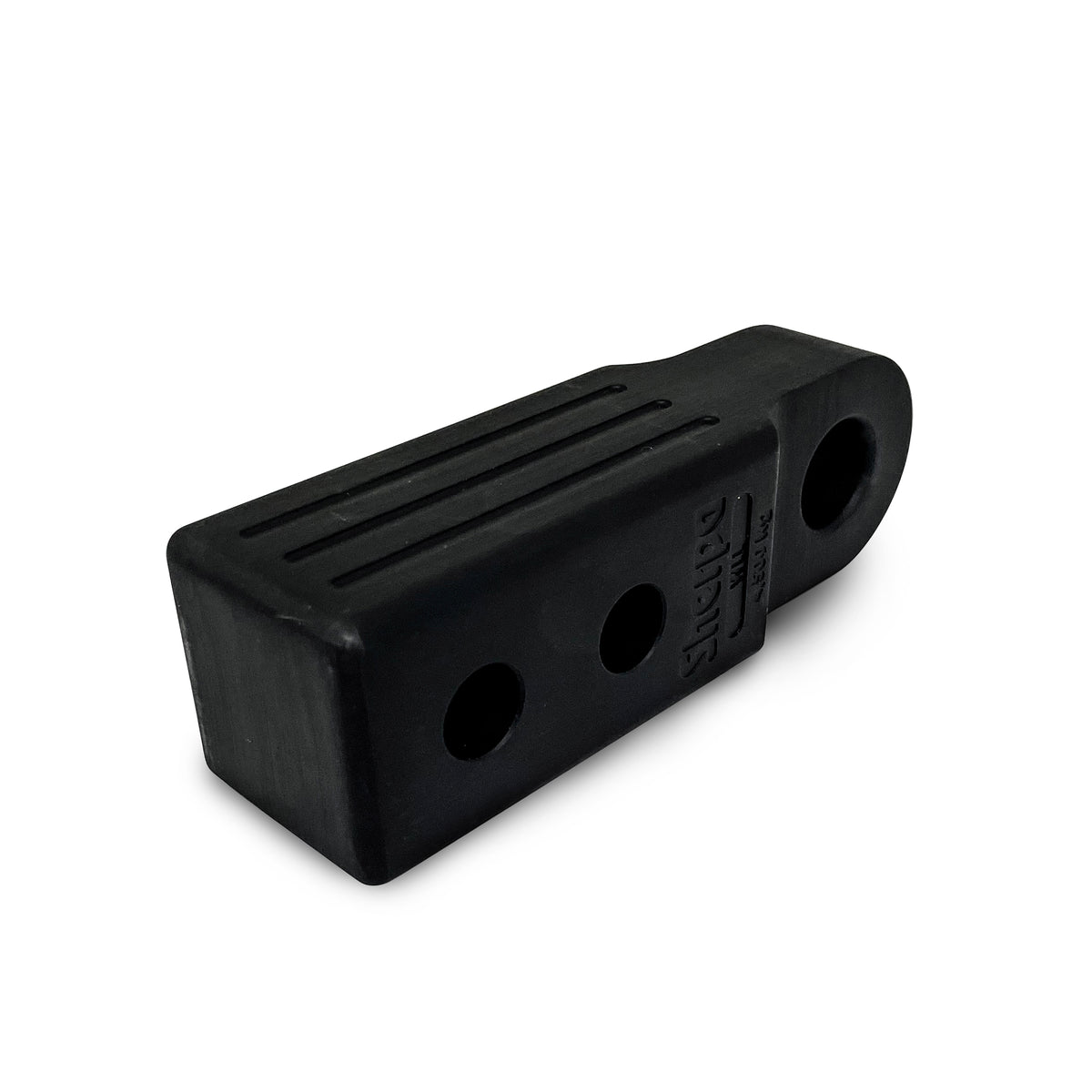

    The hitch is designed with a large recovery eye and has a smooth radius meaning it can be used with both steel D shackles or soft rope shackles.

  • Specifications:

    • Lightweight precision CNC machined 6000 series aluminum

    • Rated at 10,000lb (4,500kg), tested in excess of 20,000kg

    • Fits standard 2" receivers

    • Designed to work with soft shackles

    • Mil-A-8625 F Hard Anodized Surface

    Never exceed factory receiver hitch pull rating. Always use a quality steel alloy 5/8” hitch pin. Always pull in line with the hitch, do not bind or side load the shackle.

  • Winch Owner's Manual

    Grunter Boat Winch Owner's Manual

    ATV Winch Owner's Manual

    Winch Dimensions:

    'Mustang' 9,500Lb with 28m spool

    'Brumby' 10,000Lb high speed winch

    'Colt' 12,000Lb

    'Steed' 17,000Lb with 28m spool

    'Steed' 17,000Lb with 45m spool

    'Mule' 17,000Lb dual motor winch with 45m spool

    'Stallion'  25,000Lb winch with 30m spool

    Tow Truck Winch 20,000Lb

    'Grunter' boat trailer winches (Standard & HP Models)

    'Grunter' Boat Trailer Winch Mounting Bracket

    ATV Winch 4,500Lb

    ATV Winch 4,500Lb Mounting Plate

    Winch Control Box

    Wiring Diagrams:

    Dual Motor Winch Wiring Diagram

    Winch Solenoid Wiring Diagram

    Winch Weights:

    Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope
    ATV Winch 4,500Lb 15lb (7 kg) X X X X X X
    9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X
    10,000Lb (High Speed) X X 50lb (23 kg) X X X X
    12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X
    17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg)
    17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg)
    Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X
    25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X

    Cable Data:

     Winch Type Cable Type Length Cable Size
    Grunter Boat Trailer Winches (All models)

    Positive (Power)

    7m (~23ft) 50mm²

    Negative (Earth)

    3m (~10ft) 32mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    Grunter Cable Upgrade (Postive cable only)

    Positive (Power)

    10m (~32ft) 50mm²

    4x4 Winches (All models)

    Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.

    Positive (Power)

    1.8m (~6ft) 25mm²



    Negative (Earth)

    1.8m (~6ft) 25mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    4x4 Winch Cable Upgrade

    Positive (Power)

    3m (~10ft) 25mm²

    Negative (Earth)

    3m (~10ft) 25mm²
    Big Air - Air Compressors (All models)

    Positive (Power)

    3m (~10ft) 16mm²

    Negative (Earth)

    3m (~10ft) 16mm²
