Wireless Remote Kit
SWRR01V2
CA$189CA$199

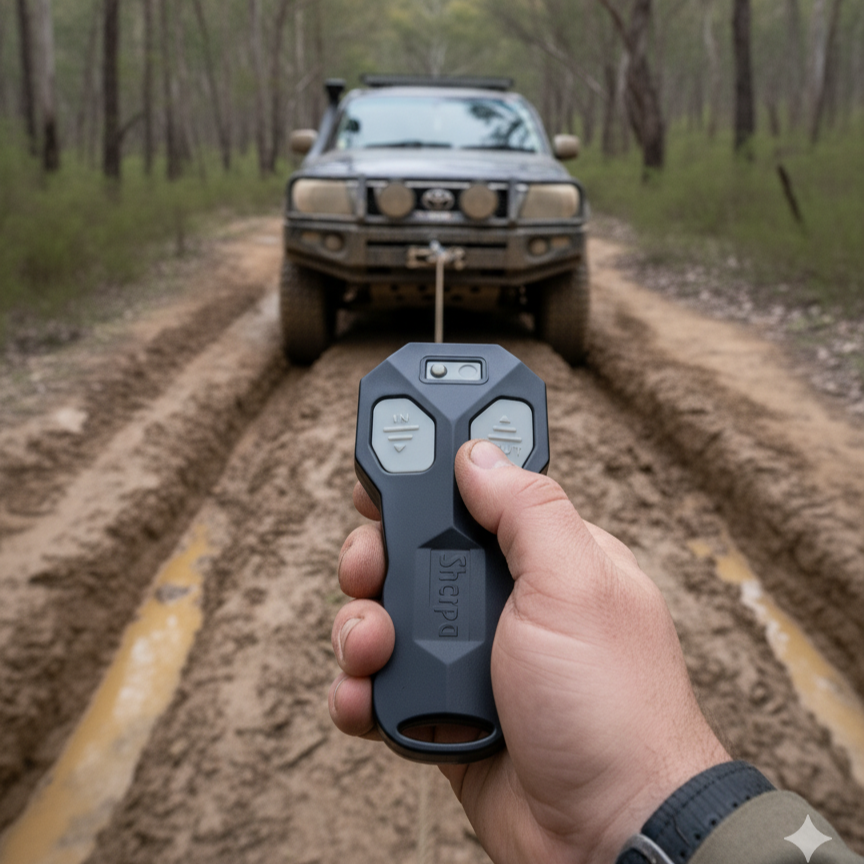

Plug n Play. Wireless receiver uses the same port as the Sherpa wired hand remote. Allows the user to move freely with the winch rope or cable. Great for winch recoveries when caught by yourself. No need to run the wired control cables back into the cabin.
-

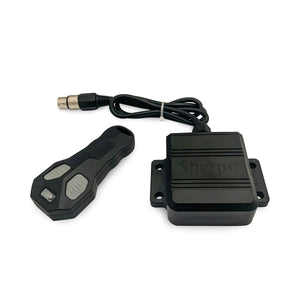

Sherpa 'Plug n Play' Wireless Remote Kit
- The ultimate in reliability, store the receiver and remote inside your vehicle! We've tried many models of inbuilt wireless remotes and all fail when submerged in water
- Plugs directly into the port on your Sherpa winch control box
- Receiver requires no batteries as it utilises the wired hand controller power supply when connected.
- Works on 12V or 24V winches, as well as 9,000Lb, 12,000Lb, 17,000Lb & 25,000Lb models. Also compatible with the Sherpa boat winches. (Not compatible with ATV winches)
- Weatherproof, Shock-Resistant housing.
Note - Sherpa can only supply these wireless remote kits to customers purchasing a new Sherpa 4x4 winch or to customers who have already purchased a Sherpa 4x4 winch and wish to retrofit the unit. These are not compatible with other brands of winches. Not suitable for retrofitting to Sherpa winches prior to 2020.
-
Specifications:
-
Working Distance - up to 65ft (20m)
-
Lead Length - 2'7" (80cm)
-
IP Rating - IP68 Enclosure
-
Warranty - 12 Months
-
-
Grunter Boat Winch Owner's Manual
Winch Dimensions:
'Mustang' 9,500Lb with 28m spool
'Brumby' 10,000Lb high speed winch
'Steed' 17,000Lb with 28m spool
'Steed' 17,000Lb with 45m spool
'Mule' 17,000Lb dual motor winch with 45m spool
'Stallion' 25,000Lb winch with 30m spool
'Grunter' boat trailer winches (Standard & HP Models)
'Grunter' Boat Trailer Winch Mounting Bracket
ATV Winch 4,500Lb Mounting Plate
Wiring Diagrams:
Dual Motor Winch Wiring Diagram
Winch Weights:
Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope ATV Winch 4,500Lb 15lb (7 kg) X X X X X X 9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X 10,000Lb (High Speed) X X 50lb (23 kg) X X X X 12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X 17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg) 17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg) Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X 25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X Cable Data:
Winch Type Cable Type Length Cable Size Grunter Boat Trailer Winches (All models) Positive (Power)
7m (~23ft) 50mm² Negative (Earth)
3m (~10ft) 32mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² Grunter Cable Upgrade (Postive cable only) Positive (Power)
10m (~32ft) 50mm² 4x4 Winches (All models)
Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.
Positive (Power)
1.8m (~6ft) 25mm² Negative (Earth)
1.8m (~6ft) 25mm² Control Box Cables
Various <1m (< ~3ft) From winch to control box only. 25mm² 4x4 Winch Cable Upgrade Positive (Power)
3m (~10ft) 25mm² Negative (Earth)
3m (~10ft) 25mm² Big Air - Air Compressors (All models) Positive (Power)
3m (~10ft) 16mm² Negative (Earth)
3m (~10ft) 16mm²
